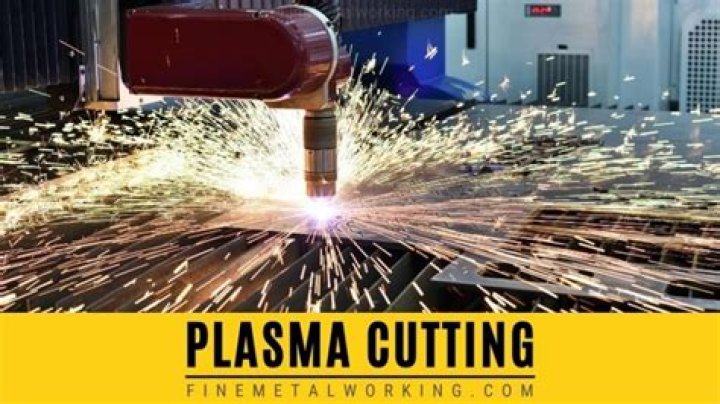

Why does my plasma cutter cut on an angle?

Bevel angle is the angle of the cut edge Most plasma torches use a clockwise swirling flow of plasma gas, which produces a straighter cut on the right hand side of the kerf with respect to forward torch motion. Bevel angle greater than 5 degrees may indicate a problem with PAC machine parameters.

.

In this manner, why do all plasma cuts have a slight bevel?

Bevel is caused by the motion of the plasma gas as it is emitted from the nozzle. In the process to create a plasma arc for cutting the gas must be shaped into a vortex. Because of this an arc will have a direction of rotation.

Furthermore, what is kerf in plasma cutting? Kerf. Kerf is the width of material (perpendicular to the torch and cut axis) removed during the plasma cutting process. Kerf is affected by three major variables.

Similarly, how can I improve the quality of my plasma cut?

Improve cut quality on metal with these plasma cutting tips

1. Positive cut angle. More material was removed from the top of the cut surface than from the bottom.
2. Negative cut angle. More material was removed from the bottom of the cut surface than from the top.
3. Top edge rounding.
4. High-speed dross.
5. Low-speed dross.
6. Top spatter.

How accurate are plasma cutters?

The Inherent Accuracy of Plasma ARC. Plasma will produce good results for perhaps 95% of the applications out there, but you're not going to cut watch parts with it. Plasma produces a cut edge that is as smooth as laser, but it is handicapped by a slight (4 to 5 degree) bevel in the cut face.

Related Question Answers

What air pressure is required for plasma cutting?

Low amperage cuts will require less air pressure for more stable operation, sometimes down to 45 psi or so, or the arc will be blown out. In general, the blowback design torch found on the PowerPlasma 50 works best around 60-65 psi for most pressures.

What is a bevel cut?

Bevel cutting is the process of cutting a part with an edge that is not perpendicular to the top of the piece. This is done to increase the surface area of the edge for a stronger, more secure weld. There are many different types of beveled edges.

What is the kerf of a plasma cutter?

A cut with 0° bevel is a straight cut, perpendicular to the plane of the material. Most plasma torches use a clockwise swirling flow of plasma gas, which produces a straighter cut on the right hand side of the kerf with respect to forward torch motion.

What causes dross?

If mild steel is processed using oxygen, we get the unavoidable oxidizing reaction in the process caused by the oxygen. As you probably know, mild steel melts at a much lower temperature than the laser beam can produce. If we overheat the material, we get dross. If the power is too low, we get dross.

What is a kerf width?

Kerf is defined as the width of material that is removed by a cutting process. When talking about CNC shape cutting with typical cutting processes, kerf is the width of material that the process removes as it cuts through the plate.

What is a bevel in welding?

At its most basic level, beveling is a process used to prepare metal for a welded seam by cutting a slope at an angle on the edge of the metal. This weld preparation sequence is an integral part of building everything from simple metal cabinets to complex metal structures to erecting bridge work.

What material can a plasma cutter cut?

Plasma cutting is a process that cuts through electrically conductive materials by means of an accelerated jet of hot plasma. Typical materials cut with a plasma torch include steel, stainless steel, aluminum, brass and copper, although other conductive metals may be cut as well.

How do you reduce slag when cutting plasma?

Solutions:

1. Replace worn cutting tip, especially if the orifice shows signs of wear.
2. Decrease the speed of your cut incrementally until dross in minimized.
3. Lower the torch height incrementally.
4. Boost current, being careful not to exceed 95% of your nozzles AMP rating.

Does plasma cutting harden steel?

Plasma leaves a hardened carburized edge after cutting steel. If you can remove a few thousandths with a grinder before milling it should go much easier.

What is a good brand of plasma cutter?

The Winners of 2020

Model	Price	Editor Rating
Hypertherm Powermax30 XP (Best Overall)	Check Price	4.80/5
Hobart 500566 Airforce 40i	Check Price	4.65/5
Lotos LTP5000D 110V/220V 50Amp Arc (Best Value)	Check Price	4.60/5
Miller Spectrum 625 X-treme Plasma Cutter	Check Price	4.35/5

Can you cut Aluminium with a plasma cutter?

Plasma cutting can be performed on any type of conductive metal - mild steel, aluminum and stainless are some examples. Plasma cutting, however, does not rely on oxidation to work, and thus it can cut aluminum, stainless and any other conductive material.

Can you weld with plasma cutter?

Tig welding is a slower process than mig welding, and will typically cost more than a comparable mig welder. Plasma cutting has allowed metal workers to create professional, precise, clean cuts. Plasma Cutters have come a long way from the cutting torches of the past.

Can a plasma cutter cut wood?

Any thickness from 30 gauge through 1 inch can be cut, depending on the plasma cutter used. Plastics and wood are not electrically conductive and cannot be plasma cut. However, you can use a rotary saw, router, or other tool if you want to cut these materials in the PlasmaCAM machine.

What gas do you use with a plasma cutter?

Multiple gases such as oxygen, high purity air, nitrogen, and a hydrogen/argon/nitrogen mixture are used as the plasma gas for optimum results on a multitude of conductive materials.

How do you measure kerf?

How to measure kerf. Measuring the kerf is fairly straightforward. You simple make a part with a known dimension (such as a one-inch square) and then carefully measure the actual width. If your one-inch square is actually 0.96 inches, then your kerf is 0.04 inches.

What is the kerf of a cut?

Kerf refers to the width of cut a sawblade makes when it's cut through wood. When you're cutting a board you have to allow for the width of the sawblade and its teeth when you're cutting. Kerf cutting is making many kerf cuts (cuts the width of your sawblade) along a piece of wood.

What gas is used for plasma cutting?

Argon gas is used when plasma marking (a whole other subject). A mixture of Argon and Hydrogen is often used when cutting thicker Stainless Steel or Aluminum. Some people use a mixture of Hydrogen and Nitrogen, or Methane and Nitrogen when cutting thinner Stainless Steel.

Will a plasma cutter cut copper?

Copper is a great heat conductor, but has a low electricity conduction rate. While you can still cut the copper material with the plasma cutter, you should not force it and cut too fast. Take your time and let the cutter work its way through the copper for a straighter and even cut.
