When should a GFCI be used?

GFCI receptacles were required in houses starting in 1971. Originally they were only required at the exterior of the house and by swimming pool equipment. Over the years, GFCI receptacles have been required in more locations such as garages, bathrooms, kitchens, etc.

.

Hereof, when would you use a GFCI breaker?

When to Install a GFCI Breaker:

1. When the majority or all of the outlets on the circuit require GFCI protection.
2. When outlets that require GFCI protection don't have the space for the bigger GFCI receptacles.
3. For specialty uses, like for heated swimming pools.

Beside above, what does a GFCI outlet do? A ground fault circuit interrupter (GFCI), or Residual Current Device (RCD) is a type of circuit breaker which shuts off electric power when it senses an imbalance between the outgoing and incoming current. A circuit breaker protects the house wires and receptacles from overheating and possible fire.

Moreover, what is a GFCI outlet and where is one needed?

Code requires that GFCI outlets be used in any location that is six feet or closer to a plumbing fixture or moisture source. This includes multiple areas of a typical home, such as: Kitchens. Bathrooms.

Do you need GFCI in kitchen?

The NEC (NFPA 70 2011 edition) requires GFCI receptacles in kitchens of dwelling units where the receptacles are installed to serve the countertop surfaces. It does not mention a distance requirement in kitchens. The distance requirement of 1.8 meters (6 feet) is for sinks located in areas other than kitchens.

Related Question Answers

What is the difference between GFI and GFCI?

GFI is an ground fault interrupting outlet. GFCI is a ground fault circuit interrupter. GFI is an ground fault interrupting outlet. GFCI is a ground fault circuit interrupter.

Which is better GFCI outlet or breaker?

Because all of these receptacles require GFCI protection, it is probably more efficient to wire the circuit with a GFCI breaker so that everything on the circuit is protected. GFCI receptacles, on the other hand, are generally used instead of a standard outlet receptacle to offer protection to single outlet location.

How do I install a GFCI breaker?

Connect the GFCI Breaker Connect the hot circuit wire to the "HOT" or "LOAD" screw terminal on the GFCI breaker, using a screwdriver. Connect the neutral circuit wire to the "NEUTRAL" screw terminal on the GFCI breaker. Connect the GFCI breaker's coiled white neutral wire to the neutral bus bar on the service panel.

Can you have 2 GFCI outlets on the same circuit?

You only need 1 GFCI outlet per circuit (assuming it's at the beginning of the line and the rest of the outlets are loads). They are correctly wired in parallel - if they were in series, you wouldn't get the correct voltage at the other outlets when there is any type of load present. It is possible.

How much does it cost to install a GFCI breaker?

Average Cost When you're looking into the cost to install a GFCI circuit breaker, you can expect to pay $165 - $280, typically, for materials and labor.

How many outlets can one GFCI protect?

Re: number of outlets after gfci Using 220.14, a maximum of 13 receptacle outlets are allowed on a 20A circuit. They can be single or dulpex and still only counts as one receptacle.

Does a bathroom GFCI need to be on a dedicated circuit?

A The main rule of Section 210-11(c)(3) requires a 20A circuit that is dedicated to bathroom receptacle outlets. It does not require a separate circuit for each bathroom. One circuit may supply multiple bathrooms as long as only bathroom receptacles are supplied.

Where do I need a GFCI breaker?

Per 210.8, you must install GFCI protection for all 15A and 20A, 125V receptacles located in bathrooms, rooftops, and kitchens in commercial/industrial facilities. However, GFCI protection is not required for receptacles installed outside a commercial or industrial occupancy.

Can I put a GFCI anywhere?

The National Electrical Code (NEC) requires GFCI outlets in all wet or damp locations such as kitchens, bathrooms, laundry rooms, basements, garages and workshops. This guide will teach you how to safely install a GFCI (ground fault circuit interrupter) outlet. Safety: Turn off the power before beginning your project.

Does outlet under sink need to be GFCI?

There are no requirements in National Electrical Code (NEC) that a residential disposal must be GFCI protected. It also requires GFCI protection for receptacles within 6' of a sink, but only sinks not in a kitchen. The 2014 edition added 210.8(D), which requires dwelling unit dishwashers to be GFCI protected.

How do you troubleshoot a GFCI?

Go to your circuit breaker and switch off the circuit for the GFCI outlet that is having problems. Then unscrew your ground fault circuit interrupter outlet and pull out the outlet from the box. Take out the black and white wires from your GFCI outlet.

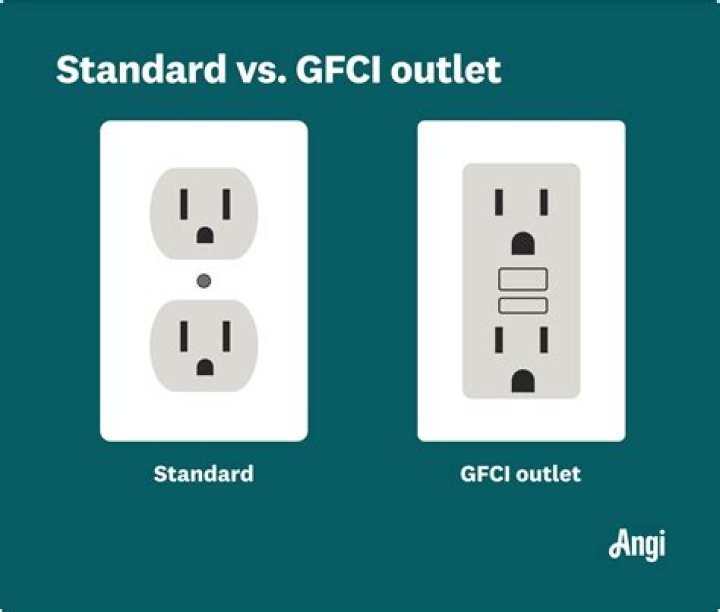

Can I replace GFCI with regular outlet?

You can replace almost any electrical outlet with a GFCI outlet. Correctly wired GFCIs will also protect other outlets on the same circuit. We'll show you how to replace a standard duplex receptacle with a GFCI and wire it to protect other outlets.

What causes GFI to trip?

If your insulation is worn out, old, or damaged, it could cause your GFCI to trip. The insulation is in the wall is meant to help prevent such leaks from occurring. So if your insulation is worn, this can cause more leaks. Sometimes having too much equipment or appliances plugged in can also cause your GFCI to trip.

Will an ungrounded GFCI work?

Ungrounded GFCI's do offer protection to personnel, even without a grounding connection. Without the grounding connection, a fault in the appliance will not trip the circuit breaker (which is essentially the reason for the ground), but it will still trip the GFCI device when an unbalanced load is detected.

Does GFCI protect equipment?

A GFCI is intended to protect persons against shock and electrocution. As implied by its name, the GFPE protects equipment from damaging line-to-ground faults and is not intended for the protection of people.

What causes GFCI trip?

An Actual Ground Fault If the GFCI detects a ground fault leakage of 5mA it will trip. This leakage is caused by a hot wire touching the ground somewhere on the electrical line such as an appliance or even the outlet itself. Moisture – Moisture anywhere in the line will trip the GFCI.

Can you daisy chain GFCI outlets?

Daisy chaining GFCI devices can be problematic, even if they appear to be wired correctly. The downstream GFCI (receptacle) may perform an internal self-test when energized, which the upstream GFCI (breaker) detects as a fault. You can daisy-chain GFCIs if you really want to. They will still protect just fine.

How many GFCI do I need in kitchen?

You only need one GFCI as long as it's installed as the first outlet in the circuit (or at least upstream of anything else that needs protection) and wired correctly. OUr inspetor required every outlet in the kitchen to be GFCI protected.

What kind of GFCI do I need for kitchen?

GFCI-Protected Small Appliance Circuits Requirement: Provide at least two 20-amp, 120-volt circuits to supply power to GFCI (Ground Fault Circuit Interrupter) receptacles for countertop and eating areas. Why: The 20 amps are required (vs. 15 amp) for the higher power requirements found in kitchens.
