What thread is 16 TPI?

Unified Thread Series 16 TPI ANSI/ASME B1. 1. 16-UN - Unified Extra Fine Thread, which is used for special purposes. The flank angle is 60°.

Similarly, what does 16 TPI mean?

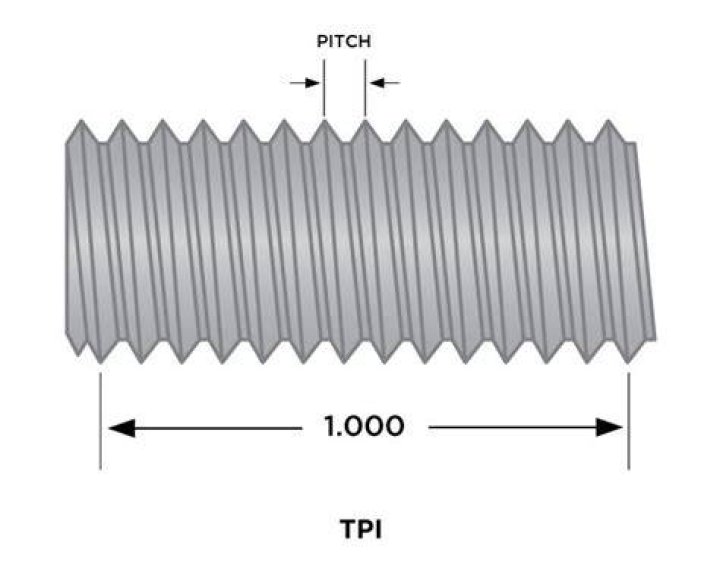

TPI stands for Threads Per Inch. This is simply a count of the number of threads per inch measured along the length of a fastener. TPI is used only with American fasteners. Metric Fasteners use a thread Pitch (see below). In general smaller fasteners have finer threads, so the thread count is higher.

One may also ask, what thread has 32 TPI? Metric Coarse Thread Forms and Pitch Thread Angle 60 o You can buy Metric Fasteners from HERE

UNC Thread Diameter (inches)	Threads Per Inch	Tap Drill Diameter (mm)
4 - 40	40	2.35
5 - 40	40	2.65
6 - 32	32	2.85
8 - 32	32	3.50

Also to know, what thread is 13 TPI?

US Threads Per Inch Table

Bolt Size	Threads Per Inch (TPI)
Bolt Size	Coarse Thread UNC	Fine Thread UNF
7/16"	14	20
1/2"	13	20
9/16"	12	18

What is UNF thread size?

The Unified Thread Series is classified into coarse threads, fine threads and extra fine threads much like Metric screw threads are. UNC: Is the symbol for Unified coarse pitch threads. UNF: Is the symbol for Unified fine pitch threads. UNEF: Is the symbol for United extra fine pitch threads.

What does TPI stand for?

Threads per inch

How do you identify UNF threads?

You can determine the size of pipe threads (NPT/NPTF, BSPT, BSPP) by measuring the outer diameter and comparing it with the profile, or in other words, by subtracting ¼ inch. For non-pipe threads (UN/UNF, Metric Parallel, Metric Tapered), determine the size by measuring the outer diameter using a caliper.

How is thread pitch calculated?

Major Diameter: Given On Print (if it is a machine screw #0-14 SEE NOTE 1A).
Pitch: 1/number of threads per inch.
Flat: pitch/8.
Compound Movement: .75(pitch).
Single Thread Height: .75(pitch) (cosine 30 degree's).
Pitch Diameter: major diameter - single thread height.

What is UNS thread?

Page 2. Unified form thread designations are represented by abbreviations such as UNC (unified coarse), UNF (unified fine), UNEF (unified extra fine), UNS (unified special) and UN (unified constant pitch), with the thread major diameter preceding the designation for example, 9/16” UNC, 9/16” UNF.

What is the pitch for 3/8 16 thread?

Thread Pitch Chart

Coarse Thread Series - UNC		Fine Thread Series - UNF
Nominal Size and Threads Per In.	Basic Pitch Dia.	Basic Pitch Dia.
³⁄₈ - 16	0.3344	0.3479
⁷⁄₁₆ - 14	0.3911	0.4050
¹⁄₂ - 13	0.4500	0.4675

What is the difference between 2a and 2b threads?

Classes 1A, 2A and 3A apply to external threads only, and Classes 1B, 2B and 3B apply to internal threads only. Classes 1A and 1B Unified threads are intended for ordnance and other special uses. A 3/8"-16UNC 2B is defined as a 3/8" diameter Unified coarse pitch 2B class of fit inch screw thread.

Is there a metric pipe thread?

In Europe Metric (DIN) pipe threads are common on German machines. These generally have a 1.5mm thread pitch, although this can vary. Smaller sizes can be 1.0mm thread pitch, and larger sizes can be 2.0mm thread pitch.

What does UNC stand for in threads?

Unified National Coarse

What pitch is a 1/4 20 thread?

1/4″-20 x 2″ The 1/4″ refers to the bolt diameter (in inches), the -20 refers to the threads per inch meaning that there are 20 threads per inch on this bolt, and the 2″ refers to the length (also in inches).

What is nominal thread size?

Threads are designated or named by the external thread major diameter and a pitch measurement. Thread sizes are given in nominal sizes, not in the actual measurement. The exact measurement is slightly below the named or nominal size. For example, a 6mm bolt may measure 5.8mm or 5.9mm, but it is called 6mm bolt.

What is the major diameter of a thread?

The major diameter of a thread is the diameter of the imaginary co-axial cylinder that just touches the crest of an external thread or the root of an internal thread. The minor diameter is the diameter of an imaginary cylinder that just touches the roots of an external thread and (or) the crests of an internal thread.

What is a Class 3 thread?

Class 3 threads are tight tolerance threads that have no allowance and have very tight tolerances. Class 3 threads are often specified for tight tolerance fastener applications in critical use situations where safety and strength are a primary concern, such as the aerospace industry.

How many screw threads do I need?

Generally speaking, you need at least 1-1.5 bolt diameter engaged in the nut member to achieve optimum joint strength with a thread forming fastener, depending on the strength of the nut material.

What is a 4 40 thread?

4-40: 0.1120 or 14/125 in diameter; 40 threads per inch. 5-40: 0.1250 or 1/8 in diameter; 40 threads per inch.

Is SAE coarse or fine thread?

USS are coarse threads, while SAE are fine threads.

What angle is UNF thread?

UNF - Unified National Fine Thread. Similar to UNC. UNC and UNF threads are the choices for the customary screws and nuts. The flank angle is 60°.

How many types of threads are there?

For identification purposes, hydraulic tube fittings and connectors can be divided into six different thread types: UN/UNF, NPT/NPTF, BSPP (BSP, parallel), BSPT (BSP, tapered), metric parallel, and metric tapered. Three are parallel (UN/UNF, BSPP, metric parallel) and three are tapered (NPT/NPTF, BSPT, metric tapered).

How is thread depth measured?

Generally thread depths are designed to be measured from the center line of the first full thread in the bottom of the threaded hole. This means that the gage must also be manufactured to measure from the same location. The depth notch on the go thread plug gage is usually ground 90 degrees to the axis of the gage.
