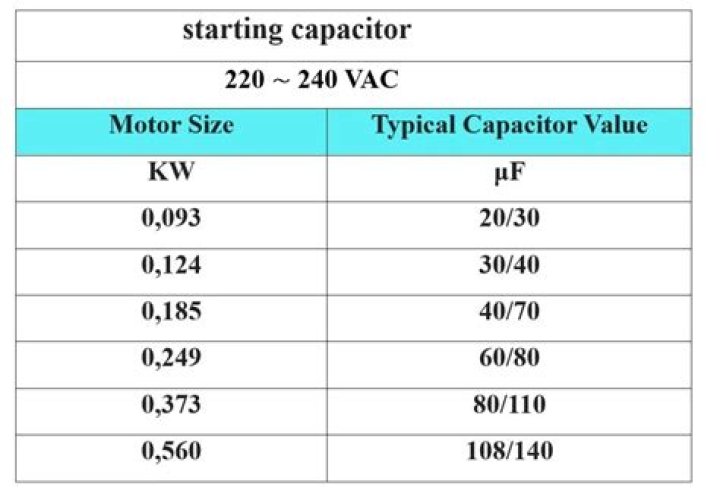

In general, starting capacitors for electric motors will be in the range of 50 - 1200 µF and will be rated for voltages of 110/125, 165, 220/250 or 330 VAC and will be labeled as functioning at 50Hz or 60Hz. Most capacitors use a 1/4" flat bladed push-terminal connector with two terminals per post..
People also ask, can I use a bigger capacitor than needed?
Much the same way, a motor will not run properly with a weak capacitor. This is not to imply bigger is better, because a capacitor that is too large can cause energy consumption to rise. There is a maximum of +10% tolerance in microfarad rating on replacement start capacitors, but exact run capacitors must be replaced.
Likewise, what is the difference between starting capacitor and running capacitor? The start capacitor creates a current to voltage lag in the separate start windings of the motor. The current builds up slowly, and the armature has an opportunity to begin rotating with the field of current. A run capacitor uses the charge in the dielectric to boost the current which provides power to the motor.
In this way, can I replace a capacitor with a higher UF?
You can almost always replace a capacitor with one of a higher voltage. This is the limiting factor of a capacitor due to dielectric breakdown voltages that the manufacturer chose. Varying capacitance gets a little trickier.
Can an AC capacitor kill you?
They contain big capacitors that can, potentially, kill you with the charge they contain. If you hook a small capacitor to a battery, then no current will flow between the poles of the battery once the capacitor charges. However, any alternating current (AC) signal flows through a capacitor unimpeded.
Related Question Answers
What is the difference between 370 VAC and 440 VAC capacitors?
The same apply with capacitor that is rated 370 Volts. A 440 capacitor can easily replace his little cousin 370, but not vice versa. When a 370 is used instead of the correct one it will fail prematurely, because the dielectric that is used to build it can't handle voltage that high.Can a bad capacitor ruin a compressor?
A compressor or fan motor that drags due to damage or worn bearings might cause the capacitor to burn up. Lightning can damage a capacitor, a compressor, the fan motor or the wires in the unit. Even a weak power surge can damage or destroy the capacitor, which can lead to compressor overload and subsequent failure.Can I use different capacitor values?
Replacing a capacitor with something that has a higher voltage rating is always safe. The only problem there is that a capacitor rated for a higher voltage is often physically larger, everything else being equal. Sometimes it is also safe to use capacitors with a larger capacitance (Farads).How do you tell what size your AC unit is?
The digits you need The 3 digits in the model number tell you the nominal capacity in thousands of BTU/hr. Since each 12,000 BTU/hr is equivalent to 1 ton of air conditioner capacity, it's easy to figure out how many tons of nominal capacity your AC has.How much does a capacitor for AC unit cost?
The cost of replacing an air conditioner capacitor may vary depending on the brand and the features. On average, the cost of replacement ranges from $120 to $150. Branded units can cost a lot more than the generic ones, with some of these prices reaching up to $400.What happens if we increase the capacitor value?
Thus, a capacitor lets more current flow as the frequency of the source voltage is increased. The apparent resistance of a capacitor in an AC circuit is less than its DC resistance. This apparent AC resistance is called capacitive reactance, and its value decreases as the applied frequency increases.Can I use a 440v capacitor instead of a 370v?
The voltage rating displays the “not to exceed” rating, which means you can replace a 370v with a 440v but you cannot replace a 440v with a 370v. This misconception is so common that many capacitor manufactures began stamping 440v capacitors with 370/440v just to eliminate confusion.Will a bad capacitor cause a motor to run slow?
Changing out a capacitor is a simple, inexpensive problem that most all homeowners can fix easily if you are good with your hands and have the right capacitor. Weak or bad capacitors can also cause blower motors to not run or to run slow.What happens when a run capacitor goes bad?
The most common problem that bad capacitors can cause is “hard starting.” This is when the compressor of an AC has difficulty starting up, stutters trying to turn on, and then shuts off a short while later. In most cases of capacitor problems, such as damage or a loss of charge, the capacitor will need to be replaced.How do you calculate KVAR?
For the KVAR formula, it is as follows: Q = X*I*I. In reactive power formula, X refers to the reactance of the circuit and I is the current that runs through the circuit. You'll need to understand the formula to learn more about the use of reactive power.How do you test a small capacitor?
To test the capacitor with a multimeter, set the meter to read in the high ohms range, somewhere above 10k and 1m ohms. Touch the meter leads to the corresponding leads on the capacitor, red to positive and black to negative. The meter should start at zero and then moving slowly toward infinity.How fast do capacitors discharge?
One time constant, τ=RC=(3KΩ)(1000µF)=3 seconds. 5x3=15 seconds. So it takes the capacitor 15 seconds to discharge up to 0 volts.
