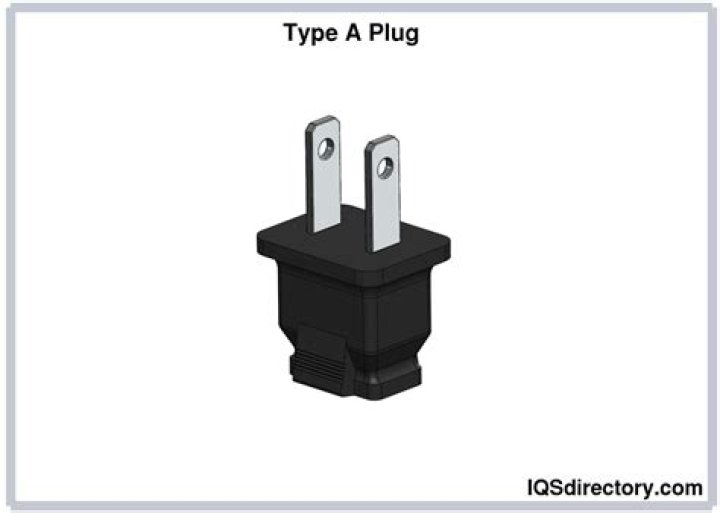

What is Type A plug?

The Type A electrical plug (or flat blade attachment plug) is an ungrounded plug with two flat parallel pins. Although the American and Japanese plugs appear identical, the neutral pin on the American plug is wider than the live pin, whereas on the Japanese plug both pins are the same size.

.

In respect to this, what is a Type B plug?

The Type B electrical plug has two flat parallel pins and a round grounding (or earth) pin. The earth pin is longer than the other two so that the device is grounded before the power is connected. As with the type A plugs, the American and Japanese versions vary slightly. Type B plugs are rated at 15 amps.

which countries use Type A plugs? TYPE A

• Type A is used, for instance, in North and Central America and Japan. (
• This class II ungrounded plug with two flat parallel prongs is pretty much standard in most of North and Central America.
• Type A and B plugs have two flat prongs with (often, but not always) a hole near the tip.

Furthermore, what type of plug is used in USA?

Plug type A is the plug which has two flat parallel pins and plug type B is the plug which has two flat parallel pins and a grounding pin. USA operates on a 120V supply voltage and 60Hz.

Can I use Type A plug in type B socket?

Most American outlets are Type B, while American devices have either Type A or B plug-ins. Type A devices work in both Type A and B outlets, but Type B devices only work in Type B outlets. Type B outlets are almost always 110-127V.

Related Question Answers

What does a Type C plug look like?

The Type C electrical plug (or Europlug) is a two-wire plug that has two round pins. It fits into any socket that accepts 4.0 – 4.8 mm round contacts on 19 mm centres. They are being replaced by E, F, J, K or N sockets which work perfectly with Type C plugs.

What does a Type D plug look like?

The Type D electrical plug has three large round pins in a triangular pattern. Type M plugs are often used alongside Type D plugs for larger appliances and as a result, some sockets work with both Type D and Type M plugs. Type D plugs are rated 5 amps.

What is a 3 prong plug called?

3-Prong Outlets. The standard 3-prong receptacle is called a grounding receptacle because it allows a grounding wire to be connected from the electrical circuit to the appliance. The grounding wire is connected to the third prong of the plug.

Will a Type F plug fit in a Type C outlet?

Type F is similar to C except that it is round and has the addition of two grounding clips on the side of the plug. The plug has two 4.8 mm round pins, measuring 19 mm in length on centres spaced 19 mm apart. A type C plug fits perfectly into a type F socket.

What is G type plug?

The Type G electrical plug is a British three-pin rectangular blade plug that has a protective fuse inside to protect cords from high-current circuits. Type G outlets generally include safety switches.

Can I remove the ground from a plug?

Never remove the ground prong. Ever. If you have to use a 3-wire device in a 2-wire system your options are: a 3x2 blade adapter, a portable GFCI device or replacing the 2-wire receptacle with a GFCI receptacle.

What does a 240 plug look like?

Look at the outlet and see if it looks different than the other standard outlets in your home. A 240V outlet is larger than a standard outlet, normally 4 1/2 inches high and 4 1/2 inches wide, with either a single three prong opening in the shape of a Y or a single four prong opening that includes a ground.

Can you use a plug without a ground?

No, it is not as safe as when there is a proper ground prong and plugged into a socket with a proper ground wire leading from it to ground. In fact the house I now live in does not have a ground wire on any socket. The plugs may have a ground prong, but is not connected to anything.

What does a 220v plug look like?

If you look at a 220V to 110V wiring diagram, you'll note that a 220V circuit has two hot wires. That means a 220V plug has to have an extra hot terminal, which is brass by convention. A 110V outlet (and plug) has only one hot terminal, and the hot wire is always black.

Can I change a European plug to a US plug?

American appliances run on 110 volts, while European appliances are 220 volts. If you see a range of voltages printed on the item or its plug (such as "110–220"), you're OK in Europe. Some older appliances have a voltage switch marked 110 (US) and 220 (Europe) — switch it to 220 as you pack.

How many types of plugs are there?

15 types

Will my phone charger work in USA?

just the US socket adapter is all you need. All your stuff will charge just fine. The US socket is just fine. If it extends down to 110v (so, for example 110-250v) then it will work with a simple adaptor.

How do you tell if outlet is 15 or 20 amps?

Electrical plugs designated as 20 amp will not fit into 15-amp outlets.

1. A 15-amp circuit is usually served by 14-gauge wire and is protected by a 15-amp circuit breaker or fuse.
2. A 20-amp circuit, protected by a 20-amp breaker or fuse, must be served by 12-gauge or 10-gauge wire.

What is EU plug?

The Europlug is a flat, two-pole, round-pin domestic AC power plug, rated for voltages up to 250 V and currents up to 2.5 A. It is a compromise design intended to connect low-power Class II appliances safely to the many different forms of round-pin domestic power socket used across Europe.

Is US plug same as Japan?

Japanese sockets are (mostly) physically compatible with American plugs, and although the nominal line voltage is lower in Japan (100V), the vast majority of modern electronics goods intended for American line voltage (110V) work just fine in Japan.

What does a Chinese plug look like?

There are three types of plugs used in China – three-pronged angled pins, two flat pins (the most common) or two narrow round pins. Electricity is 220 volts, 50 cycles AC.

Can 120 volts kill you?

Ordinary, household, 120 volts AC electricity is dangerous and it can kill. Electrical current involves the flow of electrons and it's measured in amps.

Do UK plugs work in Nigeria?

You can use your electric appliances in Nigeria, if the standard voltage in your country is in between 220 - 240 V (as is in the UK, Europe, Australia and most of Asia and Africa). You can also consider a combined power plug adapter/voltage converter.

Do Australian plugs work in Argentina?

The voltage is not exact, but the difference is usually tolerable by electrical devices. Its mostly safe to plug your electrical apparatus from Australia in Argentina without a voltage adapter.
