What is the rx1 scale on a multimeter?
Most appliances have fairly low resistances, so set the meter to the RX1 scale. This scale gives a direct reading; a 10 on the scale means 10 ohms. With the RX10 scale, all readings should be multiplied by 10; thus 10 on the scale would be read as 100 ohms.
.
Simply so, what are the symbols on a multimeter?
If you need to measure alternating current in a circuit, different multimeters have different symbols to measure it (and the corresponding voltage), usually "ACA" and "ACV," or "A" and "V" with a squiggly line (~) next to or above them.
Similarly, what are the symbols of a circuit? Schematic Symbols
- Wires (Connected) This symbol represents a shared electrical connection between two components.
- Wires (Not Connected)
- DC Supply Voltage.
- Ground.
- No Connection (nc)
- Resistor.
- Capacitor, Polarized (Electrolytic)
- Light-Emitting Diode (LED)
Similarly, what does 200m mean on a multimeter?
The range switch on the front of the multimeter shows the maximum current that can be measured on that range. The range switch is pointing at the "200m" DC Amps range in the picture. Therefore, the full-scale readout for this range will be about[1] 200 milliamps.
What is the symbol for a resistor?
The Ohm is often represented by the omega symbol: Ω. The symbol for resistance is a zigzag line as shown below. The letter "R" is used in equations.
Related Question AnswersWhat does mV mean on a multimeter?
Button 11: AC Millivolts. Now, we're back to serious multimeter symbols. This one is an “mV” with a squiggly line on top of the V. It is used to test smaller circuits using the AC Voltage setting that are especially low.What are the symbols on a Fluke Multimeter?
Symbols on Multimeter Meaning| Variable | Symbols | Symbols |
|---|---|---|
| Voltage | V | V |
| Resistance | R | Ω |
| Current | I | A |
How do you test a 240v with a multimeter?
This is a common multimeter used for testing electrical circuits.- Turn the dial or select the button on the multimeter so that the meter measures voltage in an A/C circuit.
- Insert the metal tip of the test lead at the end of the black wire into one of the two terminals in the 240V socket.
What does OL mean on a fluke?
open loopHow do you check continuity?
How to test for continuity- Turn the dial to Continuity Test mode (
- If required, press the continuity button.
- First insert the black test lead into the COM jack.
- Then insert the red lead into the VΩ jack.
- With the circuit de-energized, connect the test leads across the component being tested.
What should you not do with a multimeter?
Safety Tips to Measuring Voltage With a Multimeter- Do not use your test leads if the protective insulation on the leads or probes is cracked or worn.
- The movement of current from one hand to the other during an electric shock is the most dangerous.
- Both DC and AC voltage can be very dangerous.
How do you use a multimeter for dummies?
Set the mode to V with a wavy line if you're measuring AC voltage or to the V with a straight line if you're measuring DC voltage. Make sure the red probe is connected to the port with a V next to it. Connect the red probe to the positive side of your component, which is where the current is coming from.How do you check for a short circuit with a multimeter?
How to Find a Short With a Multimeter- Turn the multimeter settings knob to "continuity." The continuity setting is indicated by a small microphone symbol.
- Place the negative multimeter probe, the black one, on one end of the wire you want to test for continuity.
- Look at the monitor on the multimeter.

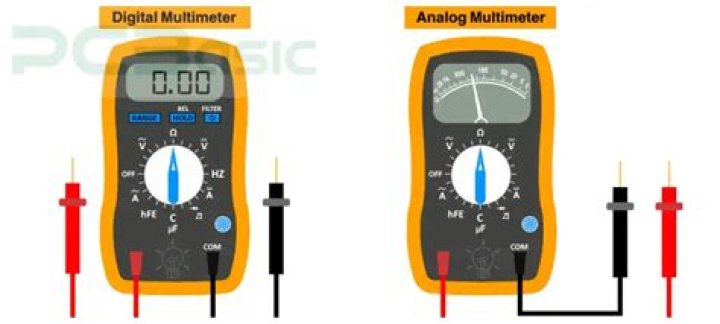

Is a multimeter and a voltmeter the same thing?
An ammeter measures current, a voltmeter measures the potential difference (voltage) between two points, and an ohmmeter measures resistance. A multimeter combines these functions and possibly some additional ones as well, into a single instrument. There are two kinds of voltmeters.How do you check voltage with a multimeter?
How Do You Check Voltage With a Multimeter? Plug the black probe into COM and the red probe into the socket marked VΩ. Set the range to DC or AC volts and touch the probe tips to the two points between which voltage needs to be measured.How many ohms is an open circuit?
Open-When the term open is used in relation to an electrical circuit it means current cannot flow or no continuity. Infinity ohms-This is what an ohmmeter reads when placed on an open circuit. On an analog meter infinity ohms is when the needle doesn't move at all and on a digital meter infinity ohms is 1 .What does a reading of 0 ohms mean?
Resistance is measured in ohms with no current flowing through the circuit. It indicates zero ohms when there is no resistance between the test points. This shows continuity of current flow in a closed circuit. It indicates infinity when there are no connections in the circuit that is as in an open circuit.What does 2m ohms mean on a multimeter?
2m: .00. The number on the dial represents the max reading for each scale. 200: 1 (infinite resistance) -> this means the value is over 200 ohms. For 2k, 20k, 200k, the reading is in k-ohms the most accurate one in the 2k range .How do you check resistors with a multimeter?
Steps- Remove power from the circuit containing the resistor.
- Isolate the resistor from the circuit.
- Inspect the resistor.
- Read the resistor value visually.
- Prepare a digital multimeter (DMM) to measure the resistor.
- Measure the resistance.
- Determine the actual resistance of the resistor.
What does it mean to Ohm something out?
“Ohming out a motor” is the process of measuring the electrical resistance of the motor windings and comparing that resistance to normal values.How many ohms should a wire have?
Common Wire Gauges| AWG wire size (solid) | Diameter (inches) | Resistance per 1000 ft (ohms) |
|---|---|---|
| 18 | 0.0403 | 6.385 |
| 16 | 0.0508 | 4.016 |
| 14 | 0.0640 | 2.525 |
| 12 | 0.0808 | 1.588 |
What does 2000k ohms mean?
Each is a resistance value of ohms: 20k = 20,000 ohms. 2000k = 2,000,000 ohms. 200 = 200 ohms.How do you use an ohmmeter?
How to Use an Ohmmeter- Disconnect completely and/or turn OFF all power to the circuit you are testing.
- Connect testing wires to the ohmmeter.
- Consult a service manual for the normal range of resistance for the circuit you are testing.
- Set the dial to the "ohms (Ω)" setting with a multimeter.
