The granular subbase forms the lowest (bottom) layer of the pavement structure, and acts as the principal foundation for the subsequent road profile, provides drainage for the pavement structure, and protects the structure from frost..
In this way, what is granular sub base in road construction?
GSB - Granular Sub Base is the layer in road foundation just above the compacted soil layer (the compacted soil layer is called subgrade).
Also Know, what is granular base course? Granular Base Course: A mixture of soil particles ranging in size from coarse to fine. Processing involve crushing oversized particles and screening where it is necessary to secure the desired grading. The requirements of a satisfactory soil aggregate surface are: Stability.
Also, what is base and sub base?
In highway engineering, subbase is the layer of aggregate material laid on the subgrade, on which the base course layer is located. It may be omitted when there will be only foot traffic on the pavement, but it is necessary for surfaces used by vehicles. Subbase is often the main load-bearing layer of the pavement.
What is sub base made of?
Typical Subbase Materials Manufactured aggregate. Crushed rock. Lean concrete. Recycled materials, such as crushed concrete or brick.
Related Question Answers
What is granular sub base used for?
The granular subbase forms the lowest (bottom) layer of the pavement structure, and acts as the principal foundation for the subsequent road profile, provides drainage for the pavement structure, and protects the structure from frost.What is granular fill used for?
Uses. While granular fill was once a common form of attic insulation, it's primarily used in the masonry field today. Builders use this material to quickly fill the voids in concrete block when erecting block homes, schools and commercial buildings.What is difference between GSB and WMM?
However WMM or Bituminous Macadam use the same technique but the binding material changes. GSB or granular sub base is a typical layer adopted in highway construction, which is laid above the subgrade and below the crust materials.What is CBR value?
CBR is the ratio expressed in percentage of force per unit area required to penetrate a soil mass with a standard circular plunger of 50 mm diameter at the rate of 1.25 mm/min to that required for corresponding penetration in a standard material.What is a Type 1 Sub Base?
Mot Type 1 limestone is sized from 40mm down to dust and is mainly used as a bulk fill, a levelling material and as a sub-base for paths, ponds, drives, sheds, patios and construction jobs. MOT Type 1 is permeable so assists with drainage and as it includes the larger stones it won't easily wash away.What is GSB material?
After the Earth Work the Sub-Base of the road is constructed with Granular material. Granular sub-base (GSB) is constructed with well graded Granular Soil, maintaining suitable moisture content and compacted in layers not exceeding 100mm. Compaction is done till required density is achieved as per the design.What are the different layers of a road?

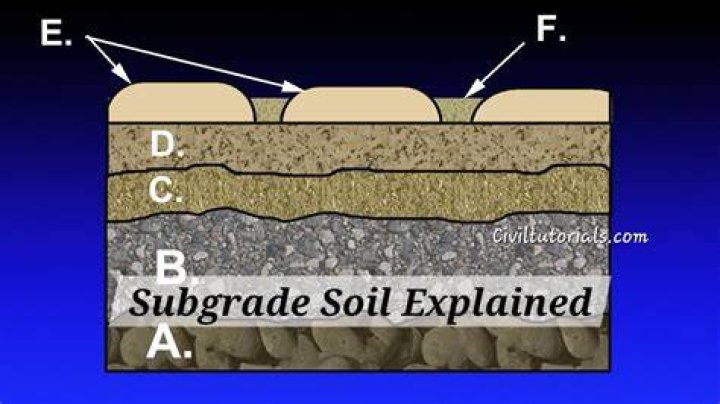

Typical layers of a flexible pavement. Typical layers of a conventional flexible pavement includes seal coat, surface course, tack coat, binder course, prime coat, base course, sub-base course, compacted sub-grade, and natural sub-grade (Figure 2).What is DBM in road work?
3. Introduction: • Dense Bituminous Macadam (DBM) is a binder course used for roads with more number of heavy commercial vehicles and a close-graded premix material having a voids content of 5-10 per cent.What is Type 2 Sub Base?
Type 2 crushed concrete is a standard sub-base material and used for roads such as pot-hole filling-in but like Type 1 it can be used for other things like driveways, backfill material, patios, tracks and other paths. It is crushed stone which is less than 40mm in size down to dust with no specified grading.What is the base?
In chemistry, a base is a chemical species that donates electrons, accepts protons, or releases hydroxide (OH-) ions in aqueous solution. Types of bases include Arrhenius base, Bronsted-Lowry base, and Lewis base.What is a good base for asphalt?
In many cases a 4-inch thickness may be adequate, but 5 or even 6 inches of full-depth asphalt will assure you of a stronger, stable driveway under a wider range of climate and loads. As an option, some contractors use 6 to 8 inches of compacted aggregate, or gravel, as a base for 3 inches of asphalt pavement.What is base course made of?
Base Course in pavements refers to the sub-layer material of an asphalt roadway and is placed directly on top of the undisturbed soil (Sub-Grade) so as to provide a foundation to support the top layers of the pavement. It is typically made of a recipe of different sizes of aggregate rock inclusive of 1″ to fine dust.What is road base made out of?
The Base: The base is a layer that also consists of crushed stone but slightly smaller stones than the sub-base In some cases, stone dust or stone fines will be mixed with the aggregate to reduce voids and will hold the layer in place better.How thick is a road base?
If there is a sub-base course, the base course is constructed directly above this layer. Otherwise, it is built directly on top of the subgrade. Typical base course thickness ranges from 100 to 150 millimetres (4 to 6 in) and is governed by underlying layer properties.What is road base gravel?
Road Base Material also known as road rock, road gravel, aggregate base, AB, asphalt base and 3/4″ minus. It allows the storm water to be shed and keep the road bed from becoming a bed of mud. Base material primarily used in driveways and pathways, and an excellent wet weather product.What is the best road base material?
Some good natural clay material was mixed as the gravel was being crushed. The result was good surface gravel that has a very nice blend of stone, sand and good plastic fines which make a strong, tightly bound gravel surface.What is the difference between subbase and base course?
Base courses are usually constructed out of crushed aggregate or HMA. Subbase Course. The layer between the base course and subgrade. The subbase generally consists of lower quality materials than the base course but better than the subgrade soils.What is base construction?
Base construction or 'base build' refers to the works done, usually by speculative office building developers, to erect the 'basic' elements of a buildings. Once the building is let to tenants they are then given responsibility or the fit out of the interior, that is, making interior spaces suitable for occupation.Which soil is suitable for road construction?
Many different types of soils may be suitable for use in the construction of an embankment or fill, ranging from granular soils (sand and gravel), which are highly desirable, to the more finely sized soils (silt and clay), which are usually somewhat less desirable.
