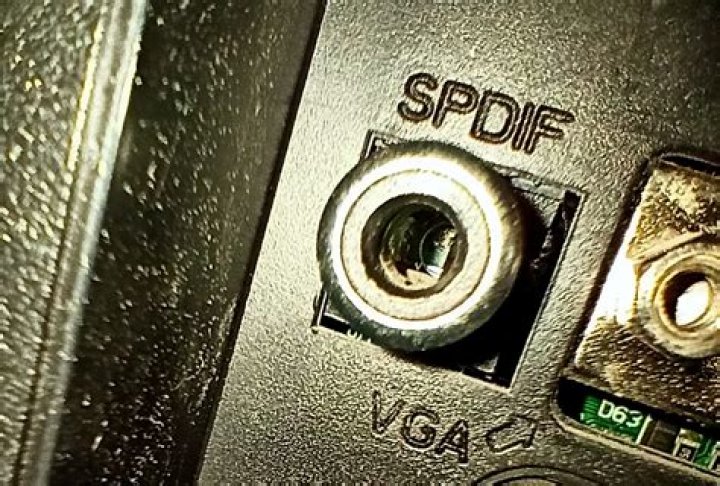

What is Spdif mode on TV?

SPDIF, also written as S/PDIF, stands for Sony/Phillips Digital Interface, and is an interface to transmit digital audio. Digital audio means that the audio signal is transmitted encoded in a series of 0s and 1s instead of being transmitted in analog format.

.

In this regard, what is Spdif mode in LED TV?

S/PDIF (Sony/Philips Digital Interface) is a type of digital audio interconnect used in consumer audio equipment to output audio over reasonably short distances. The signal is transmitted over either a coaxial cable with RCA connectors or a fiber optic cable with TOSLINK connectors.

Subsequently, question is, is Spdif better than HDMI? Both HDMI and optical pass digital audio from one device to another. Both are better than analog (the red and white cables). Both cables can be had pretty cheap. The biggest difference is that HDMI can pass higher-resolution audio, including the formats found on Blu-ray: Dolby TrueHD and DTS HD Master Audio.

Herein, how do I use Spdif on my TV?

If so, you should make sure to use a SPDIF RCA cable or Toslink optical cable from the Cable or Satellite TV box to the Surround sound Receiver. Make sure to set up the Receiver to use the digital audio from the input you connect to.

What is the difference between Spdif and optical?

Optical usually refers to the ADAT protocol over a fiber optic cable (TOSLINK), while SPDIF is usually transmitted over a coaxial "RCA" cable. "Usually", optical can carry 8 channels at 44.1/48KHz (or 4 at 88.2/96KHz in certain situations) while SPDIF is stereo (two channels).

Related Question Answers

What is the use of coaxial port?

Applications. Coaxial cable is used as a transmission line for radio frequency signals. Its applications include feedlines connecting radio transmitters and receivers to their antennas, computer network (e.g., Ethernet) connections, digital audio (S/PDIF), and distribution of cable television signals.

What is the Spdif port used for?

The SPDIF output is a digital audio output. It would be used to feed stereo audio to an outboard Digital to Analog converter for better quality than your audio board. It will also feed the Dolby Digital or DTS audio from DVDs or video files to a home theater system to be decoded there.

How do you use S PDIF?

S/PDIF Input

1. Using a S/PDIF cable, connect a device's S/PDIF output to your Scarlett's S/PDIF IN socket.
2. Set all devices in your system to the same sample rate (44.1 kHz, 48 kHz, etc.).
3. Set your device's clock settings so that all devices are receiving clock signal from a single master device.

How do you use PDIF digital audio S?

To connect digital audio from your PC to an AV receiver:

1. Connect the Digital Out connector on the back panel of your PC, to the Digital Input (SPDIF) on your AV receiver or digital audio system. Use only one Digital Audio Out connector at a time.
2. Select the AV receiver input.
3. Use the AV receiver to adjust the volume.

What is coaxial output on TV?

Coaxial output connects a coaxial cable to a device or terminal with a coaxial input. They are used in a variety of communication and electronic networks, from transmitting radio frequencies to connecting DVD players to an audio system.

How do I connect my TV to speakers?

Locate the analog or digital audio output jack on the television. For analog, the output is often labeled AUDIO OUT and could be two RCA jacks or a single 3.5 mm mini-jack. For digital sound, locate the optical digital output or HDMI OUT port. Locate an unused analog audio input on your stereo receiver or amplifier.

What is an optical Spdif cable?

SPDIF Cables The optical SPDIF cable is a fiber optics. There are two kinds of optical connector. This 3.5 mm connector has the same size as a 3.5 mm headphone plug and is commonly used on laptop computers. There are also adapters for you to convert the regular square connector into a 3.5 mm one.

What is Spdif output Samsung TV?

audio signals are transmitted between audio devices. S/PDIF is used in CD players, DVD players, computer sound cards, Home Theater Systems, TVs, and other audio equipment. capable of producing digital audio. If your TV has a Digital Optical jack, that jack transmits digital audio using S/PDIF.

What does a digital audio cable look like?

A digital coaxial connector looks like an RCA connector, but it transmits digital data instead of analog signals. The digital coaxial cable is thicker than a typical audio cable, however, because it uses the same type of shielded coaxial cable you use to connect your television to your cable box.

What is Digital Audio Out?

The digital audio out (optical) is for a Toslink cable which is a fibre-optic cable that streams digital audio signals from the TV to the AV Receiver of your home theatre system. The audio out is to output analogue signals to the AV Receiver. Some TVs have two RCA jacks for the output of the left and right channels.

How do I connect my digital coax cable to my TV?

Connect the open end of the round coaxial cable (1) to the cable input connector at the back of the cable/satellite box. Use another round coaxial cable (2) to connect one end to the cable output connector at the back of the cable/satellite box and the other end to the TV ANTENNA connector at the back of the TV.

Where do you plug in digital coaxial cable?

Plug the digital coaxial cable(s) into the "Digital Audio Out" ports on the back of the device you want to send the audio signal from.

How does HDMI ARC work?

HDMI ARC stands for "High Definition Multimedia Interface Audio Return Channel". ARC allows for the "upstream" and "downstream" of signals over a single HDMI connection between your TV and any ARC-equipped A/V deices. This allows for the use of a single remote for all of your connected devices most common functions.

What does an optical cable do?

A digital optical cable is used to transfer data, usually audio or video, from one source to another. Digital optical cables are typically more expensive than other types of cables, such as coaxial or composite, but are much more effective at reproducing a signal through the transfer.

What is coaxial digital audio out?

A coaxial digital audio connection is used to send S/PDIF digital audio signals between devices. It supports uncompressed PCM stereo audio as well as DTS and Dolby Digital 5.1/7.1 surround sound signals.

Does HDMI carry sound?

Does an HDMI cable transmit sound or just picture? HDMI transmits digital data. It carries video signals and yes, it combines the digital video with multi-channel digital uncompressed audio (“uncompressed” means it causes no losses in the process) and it can carry up to 8 channels into a single connecting cable.

Is HDMI or optical better for sound?

The major difference is that HDMI cables can pass higher resolution audio which includes formats found on Blu-ray like Dolby TrueHD and DTS HD Master audio. Fiber optic cables won't be able to transmit these high-res sound formats. HDMI can also pass video signals.

Is HDMI digital or analog?

HDMI Signals. HDMI encodes, carries and decodes digital signals to high-definition displays, like HDTVs. One of the common misperceptions about HDMI is that the digital signal is innately superior to an analog signal. But signal transmission via HDTV does require an encoding step.

What is the best connection for a soundbar?

We'll start with the option that gives the best audio quality.

1. HDMI. An HDMI cable is by far the best way to hook your soundbar up to your TV.
2. Digital optical or digital coaxial.
3. 3.5mm line out or RCA.
4. Headphone jack.
