What is head loss in fluid?

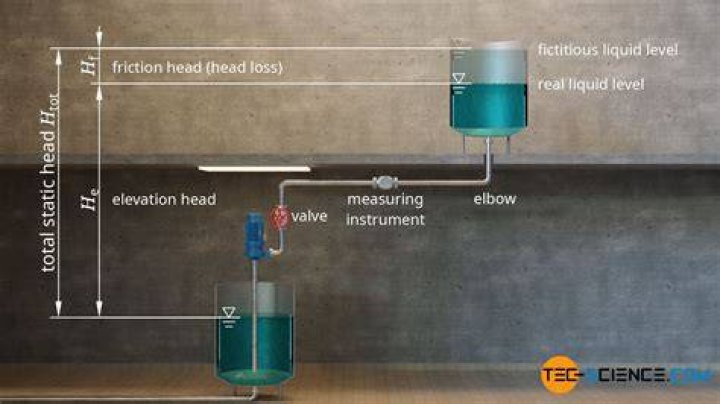

Head loss is a loss in pressure head due to the viscosity of a fluid and obstructions to a fluid such as pipe elbows, valves, etc. By knowing the head loss, you can successfully modify Bernoulli's energy equation accordingly; refer to equation 1.

.

Moreover, what is head loss in pipe?

The pipe head loss is the frictional loss in the hydro pipeline, expressed as a fraction of the available head. Water (like any viscous fluid) flowing through a pipe experiences a loss in pressure due to friction.

Secondly, what is head fluid? In fluid dynamics, head is a concept that relates the energy in an incompressible fluid to the height of an equivalent static column of that fluid. Velocity head is due to the bulk motion of a fluid (kinetic energy). Its pressure head correspondent is the dynamic pressure.

Considering this, what is the meaning of head loss?

Head loss refers to the measurement of energy dissipated in a system due to friction. It accounts for the totality of energy losses due to the length of a pipe and those due to the function of fittings, valves and other system structures.

Why is head loss important?

Head Loss – Pressure Loss. In the practical analysis of piping systems the quantity of most importance is the pressure loss due to viscous effects along the length of the system, as well as additional pressure losses arising from other technological equipments like, valves, elbows, piping entrances, fittings and tees.

Related Question Answers

What are the units of head loss?

Head-loss form Δh is the head loss due to pipe friction over the given length of pipe (SI units: m); g is the local acceleration due to gravity (m/s²).

What is head loss equation?

Head Loss. Alternatively the Darcy-Weisbach equation can express head loss as water column by dividing the pressure loss (1) with the specific weight of water. Δh_{major_loss,w} = λ (l / d_h) (ρ_f v² / 2) / γ_w. = λ (l / d_h) (ρ_f v² / 2) / ρ_w g. = λ (l / d_h) (ρ_f / ρ_w) (v² / (2 g)) (2)

How does pipe diameter affect pressure drop?

“In a water flowing pipeline, if the diameter of a pipe is reduced, the pressure in the line will increase. Where the water pipe diameter reduces, the velocity of water increases and the water pressure drops - in that section of the pipe. The narrower the pipe, the higher the velocity and the greater the pressure drop.

What is Moody chart used for?

Moody chart. In engineering, the Moody chart or Moody diagram is a graph in non-dimensional form that relates the Darcy-Weisbach friction factor f_D, Reynolds number Re, and surface roughness for fully developed flow in a circular pipe. It can be used to predict pressure drop or flow rate down such a pipe.

What is the pressure drop in a pipe?

Pipe Pressure Drop Calculations. When fluid flows through a pipe there will be a pressure drop that occurs as a result of resistance to flow. There may also be a pressure gain/loss due a change in elevation between the start and end of the pipe.

What is C value of pipe?

For PVC pipe, the standard C value is 150. New steel pipe uses a C value of 140, but with use and corrosion a lower value is typically used. For HDPE pipe, a range of C values between 150 and 160 is typical.

What is head loss and how is it calculated?

If the length of the pipe is doubled, the head loss will double. If the inside pipe diameter is doubled, the head loss will be reduced by half. If the flow rate is doubled, the head loss increases by a factor of four. With the exception of the Darcy friction factor, each of these terms can be easily measured.

What is the difference between head loss and pressure drop?

Head losses in pipe refers to the pressure drop (due to friction) as a fluid flows through a pipe. Head losses represents how much pressure will be lost due to the orientation of the pipe system. As fluid flows through these bends, the pressure of the fluid flow decreases due to a change in the direction of the fluid.

What is loss of head due to friction?

From Wikipedia, the free encyclopedia. In fluid flow, friction loss (or skin friction) is the loss of pressure or “head” that occurs in pipe or duct flow due to the effect of the fluid's viscosity near the surface of the pipe or duct.

What is the head of a pump?

Head is the height at which a pump can raise water up, that's it, it's that simple. Connect a tube to the discharge of a pump and measure the water height, that the head of the pump.

Why do bends cause head loss?

Due to bends in the pipe, the velocity of fluid flowing in the pipe changes which causes the loss of head which is equivalent to velocity head.. moreover the loss also occurs due to the material of the pipe, angle of bend and the other pipe parameters.

What is major head loss?

Major Head Loss - head loss or pressure loss - due to friction in pipes and ducts. Minor Head Loss - head loss or pressure loss - due to components as valves, bends, tees and the like in the pipe or duct system.

What is specific gravity of water?

Because water at 4 degrees Celsius is the standard scientists use to determine specific gravity, it follows that its specific gravity is 1. However, a water sample at a different temperature or pressure or one containing impurities has a density that differs slightly.

What are the units of head?

Head is expressed in units of height such as meters or feet. The static head of a pump is the maximum height (pressure) it can deliver. Head is equal to the fluid's energy per unit weight.

What is water head pressure?

Water head pressure is static pressure caused by the weight of water solely due to its height above the measuring point. The value may be expressed as pounds-per-square-inch (psi) or inches-of-water column pressure (in. W.C. or in. H2O), or metric.

What is K in Darcy's law?

K is the hydraulic conductivity [L/T] the law is very similar to Ohm's law for electrical curcuits I = 1/R * U (current = voltage divided by resistance) the orginal Darcy experiment yielded these data (Fig 6.4) the analogy between Darcy's law and Poiseulle's law suggests that K = (const*d²)*rg/m.

What is the difference between head and pressure?

Definition of head and pressure with different specific gravities are all lifted at the same height. Pressure, instead, is fluid dependent and it is affected by the liquid density. So in this case the same head generates different pressures.

Is pressure a force?

Pressure. Pressure is defined as force per unit area. It is usually more convenient to use pressure rather than force to describe the influences upon fluid behavior. The standard unit for pressure is the Pascal, which is a Newton per square meter.

What does negative head loss mean?

Negative head is a condition of negative pressure or vacuum which occurs when the pump outlet is at the same level or above the level of the cold water storage tank.
