What is exposure rate in radiography?

Radiation exposure. It is defined as the electric charge freed by such radiation in a specified volume of air divided by the mass of that air. The SI unit of exposure is the coulomb per kilogram (C/kg), which has largely replaced the roentgen (R).

Also question is, what is exposure in radiography?

Exposure. Exposure describes the ability of X-ray photons to ionize air and cannot be used for protons, neutrons or electrons. Exposure decreases with the square of the distance from an x-ray source (inverse square law).

Beside above, how much Roentgen is dangerous? To cause death within hours of exposure to radiation, the dose needs to be very high, 10Gy or higher, while 4-5Gy will kill within 60 days, and less than 1.5-2Gy will not be lethal in the short term. However all doses, no matter how small, carry a finite risk of cancer and other diseases.

People also ask, what is dosimetry in radiography?

Dosimetry is an area of increasing importance in diagnostic radiology. Common to all dosimetry methodologies is the measurement of the air kerma from the X-ray device under defined conditions.

What is a safe level of radiation exposure?

The current federal occupational limit of exposure per year for an adult (the limit for a worker using radiation) is "as low as reasonably achievable; however, not to exceed 5,000 millirems" above the 300+ millirems of natural sources of radiation and any medical radiation.

How do you calculate mAs?

600 mA x 0.1 sec. = Increasing either the current or time will increase the quantity of radiation; therefore the amount of radiation in an examination is represented as mAs.

What happens when you increase kVp?

An increase in kVp extends and intensifies the x-ray emission spectrum, such that the maximal and average/effective energies are higher and the photon number/intensity is higher.

What happens when you increase mAs?

An increase in current (mA) results in a higher production of electrons that are inside the x-ray tube which will, therefore, increase the quantity of radiation; more radiation will cause more photons reaching the detector and hence apparent structural density will decrease, yet the signal intensity will increase.

Does mAs affect contrast?

The first experiment showed that, when the film density is kept constant, the higher the kVp, the lower the resolution and image contrast percentage; also, the higher the mAs, the higher the resolution and image contrast percentage.

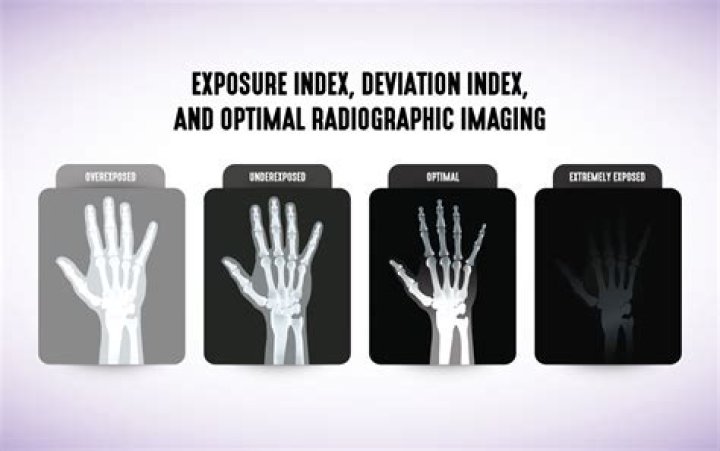

What is the exposure indicator?

The exposure indicator (EI) is a numerical. parameter used in computed radiography (CR) to inform operators about the amount of expo- sure to the imaging plate.

What is scatter radiation caused by?

Scatter radiation is a type of secondary radiation that occurs when the beam intercepts an object, causing the X-rays to be scattered.

What is exposure indicator?

The indicator is a vendor-specific value that provides the radiographer with an indication of the accuracy of their exposure settings for a specific image (ASRT, 2010). Carestream's computed radiography (CR) and digital radiography (DR) systems both reference their exposure indicator as the exposure index or EI.

When should you wear a dosimeter?

Body Badges: Most people are monitored with a dosimeter badge worn on the chest. This is to monitor what is called whole body dose. This badge should be worn on the front of the body, between the shoulders and waist. Wearing on the belt is not recommended.

What does dosimetry mean?

Dosimetry often refers to the status of wearing a personnel badge that measures and monitors dose. It may also refer to dose history and the records where dose history is maintained. More specifically, radiation dosimetry is the calculation of the absorbed dose in tissue resulting from exposure to ionizing radiation.

What does the dosimeter measure?

A radiation dosimeter is a device that measures dose uptake of external ionizing radiation. It is worn by the person being monitored when used as a personal dosimeter, and is a record of the radiation dose received.

Is a Dosimetrist a doctor?

The Medical Dosimetrist is a member of the radiation oncology team who has knowledge of the overall characteristics and clinical relevance of radiation oncology treatment machines and equipment, is cognizant of procedures commonly used in brachytherapy and has the education and expertise necessary to generate radiation

What device measures radiation?

Geiger–Muller counter

How many rads will kill a human?

About 300,000 rads. For context, 400 rads is normally enough to kill 50% of humans. 1,000 rads kills pretty much everybody.

How do you rid your body of radiation?

Consider taking vitamin C, E, and D to assist antioxidant actions within your body. Also, alpha lipoic acid is a nutrient that protects cells from radiation damage. Herbs like dandelion, peppermint, and chrysanthemum help the body detoxify.

How much radiation does a phone emit?

The brand of phones they tested that emit the most radiation can put out 1.68 watts per kilogram, as was the case with the 5T from Chinese manufacturer OnePlus. The Federal Communications Commission (FCC) in the United States sets the standard for phones at 1.6 W/kg.

What is a roentgen equal to?

Alternative Titles: R, roentgen unit. Roentgen, unit of X-radiation or gamma radiation, the amount that will produce, under normal conditions of pressure, temperature, and humidity, in 1 kg (2.2 lbs) of air, an amount of positive or negative ionization equal to 2.58 × 10⁻⁴ coulomb.

How many rads is fatal?

Health effects A dose of 100 to 200 rad delivered to the entire body in less than a day may cause acute radiation syndrome, (ARS) but is usually not fatal. Doses of 200 to 1,000 rad delivered in a few hours will cause serious illness with poor outlook at the upper end of the range.

What is the radiation level in Chernobyl today?

Soon after the nuclear meltdown at Chernobyl, dozens of cleanup workers at the plant were exposed to radiation levels as high as 8,000 to 16,000 mSv, the equivalent of 80,000 to 160,000 chest X-rays.
