What is a slab bridge?
Definition of slab bridge. : a short-span bridge consisting of a reinforced-concrete slab resting on abutments.
.
Just so, how does a slab bridge work?
Beam and Slab Bridge An in-situ reinforced concrete deck slab is then cast on permanent shuttering which spans between the beams. The precast beams can be joined together at the supports to form continuous beams which are structurally more efficient.
Beside above, what is meant by deck slab? Basically the Deck slab is the part of structures which is constructed over the girders and being used by the vehicles to cross over the bridge. It also acts as a medium to bind the girders, as the load of vehicles is directly taken by the deck slab and further transfered to the girders.
In this way, what is solid slab bridge?
The solid slab is the simplest form of reinforced concrete bridge deck. Ease of construction resulting from the simplicity makes this the most economic type for short span structures. Solid slab bridges can be simply supported on bearings or built into the abutments.
What is the deck of a bridge?
A deck is the surface of a bridge. A structural element of its superstructure, it may be constructed of concrete, steel, open grating, or wood. A concrete deck may be an integral part of the bridge structure (T-beam or double tee structure) or it may be supported with I-beams or steel girders.
Related Question AnswersHow many types of bridges are there?
Six Bridge Types- Beam.
- Truss.
- Arch.
- Cantilever.
- Suspension.
- Cable Stayed.
How do I know what type of slab I have?

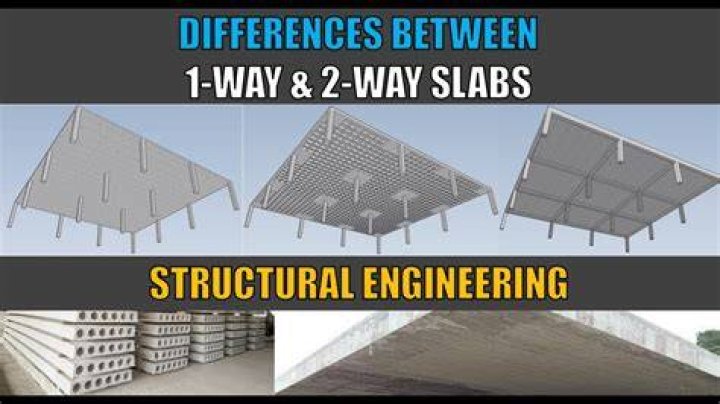

A two way slab is one that is supported on both sides by a beam. This should be helpful in visually determining the slab. If the slab tends more to the shape of a square (ly/lx <2) then again it's a two way slab. If the slab is more of a rectangular shape it's a one way slab.What is moment slab?
The moment slab reinforcement shall be designed to resist forces developed at the base of the barrier. The torsion capacity of the moment slab must be equal to or greater than the traffic barrier moment generated by the specified TL impulse load (TL-3, TL-4, TL-5) applied to the top of the barrier.How do box girder bridges work?
A box girder is formed when two web plates are joined by a common flange at both the top and the bottom. The closed cell which is formed has a much greater torsional stiffness and strength than an open section and it is this feature which is the usual reason for choosing a box girder configuration.What is a Haunched slab?
Another term is haunched slab were the load points (around the outside walls and columns inside) the slab will be thickened at these points 2 x some times 3 x the floor thickness but it is poured all at once. primer on foundations.How are concrete bridges made?
Suspension bridges When bridges requiring piers are built over a body of water, foundations are made by sinking caissons into the riverbed and filling them with concrete. Next, the anchorages are built on both ends, usually of reinforced concrete with embedded steel eyebars to which the cables will be fastened.How do you build a concrete slab?
Steps to be followed in the design of slab Assume the thickness of slab (take 4 cm per metre run of the span). Find the effective span which is lesser of (i) distance between centres of bearings, and (ii) clear span and effective depth. Find the dead load and the live load per square meter of the slab.What is RCC bridge?
A RCC bridge is a monolithic structure that is poured in place. Forms are placed, the reinforcing steel is placed into the forms and a concrete mix is poured into the forms. The rebar extends beyond the form to allow connection to the next section to be poured.What is the advantage of solid slab?
Advantages of Solid Slab Bridges: Such type of decks has the following advantages over other type of superstructures: i) Formwork is simpler and less costly. ii) Smaller thickness of deck thereby reducing the height of fill and consequently the cost of the approaches.What is a solid slab?
The solid slab is a customised, loosely reinforced, full concrete slab which is used in residential and industrial construction. Mounting parts, such as electrical outlets, wiring, openings, etc. or even heating conduits can be previously installed in the solid slab in the precasting plant.Why have a waffle slab?
The concrete waffle slab is normally used in industrial and commercial building construction, while wood and metal waffle slabs are used in various other construction sites. The main advantage this technology offers is its strong foundation characteristics that include crack and sagging resistance.What is the difference between solid slab and flat slab?
Solid slab :- “A solid slab is a common structural element of modern building, consisting of a flat, horizontal surface made of cast concrete”. Flat slab :- “It is a reinforced concrete slab supported directly by concrete columns without the use of beams”.What is a structural slab?
A slab is a structural element, made of concrete, that is used to create flat horizontal surfaces such as floors, roof decks and ceilings. A slab is generally several inches thick and supported by beams,columns, walls, or the ground.What is Deck continuity in bridges?
Multi-span bridge decks are designed to provide continuity across their support piers. The optimal construction depth/span ratios vary with span, live loading, materials, and construction methods.Which bridge carries the most different types of transport?
Girder bridge| Two different girder bridges. The top is a plate girder bridge, while the bottom is a concrete girder bridge. | |
|---|---|
| Ancestor | Beam bridge |
| Related | Trestle, truss bridge, moon bridge |
| Descendant | Box girder bridge, Plate girder bridge |
| Carries | Pedestrians, automobiles, trucks, light rail, heavy rail |
