What is a door frame called
The frame (sometimes called a jamb) is made up of three separate pieces and surrounds the door creating a “frame” in which the door can sit. The two vertical frames are called side jambs, and the horizontal frame is referred to as the head jamb.
What's the frame around a door called?
What Is an Architrave? The architrave (sometimes also referred to as jamb casing) is part of the door casing and refers to the decorative trim that sits around the door frame.
What is the difference between a door jamb and a door frame?
A jamb is the flat surface that runs vertically up either side of the door frame. … This is where the hinges are placed to hang the door, as well as the striker plate on the opposite door jamb which helps you to open, close and lock your door. The door frame is all the elements combined.
What is a door framing?
Framing a rough opening means adding about 1/2 inch clearance between the top and both sides of the door jams and the framed rough opening. This clearance provides you with a little room to fine tune the door position before securing it in place.What are parts of a door called?

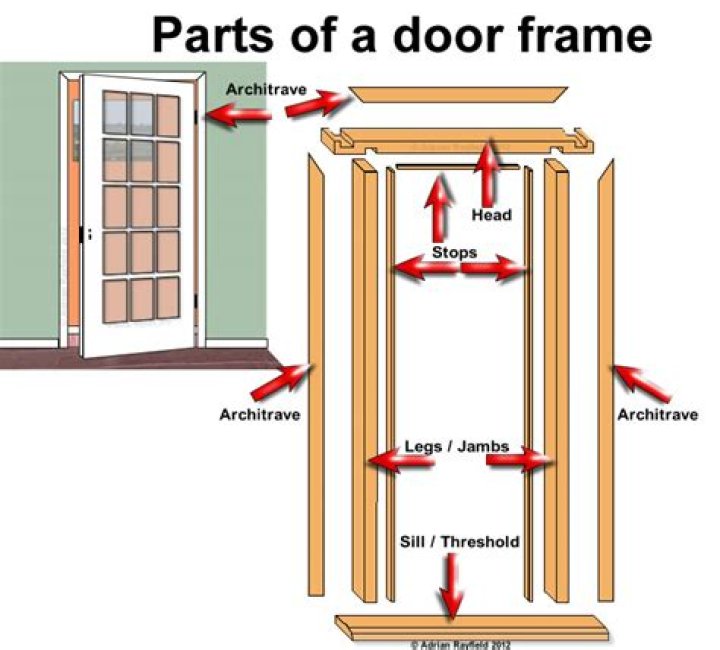

The body of any door is essentially made of three main parts: the stiles, rails and panels but there are many more elements. To help explain the most common terminology, here we have put together an illustration of a standard door and door frame, with the component parts highlighted.
What is a door surround?
An ornamental border encircling the sides and top of a door frame.
What is the gap between door and frame called?
When two individual windows or a door and window are joined, the seam between the frames of the two units is called the mull, which is short for mullion. In this case, a door jamb has been joined to a window/sidelight jamb.
What is a mullion door?
A mullion is a part of a frame that divides or separates the frame into different sections. … On a detailed hollow metal frame, for example, a mullion will separate pieces of glass, panels, or will separate a door and the glass or panels. On a pair of doors a mullion can separate the two doors from each other.What is a door header?
A header is a beam that spans the opening for a doorway, window, skylight, or stairway. … Now, the word header refers to a beam-like support in wood-frame construction. The header spans an opening for a window or door, or it is a cut-out in the roof or floor for a skylight, chimney, or staircase.
What are the parts of an exterior door?- Doorway. A doorway is one of the easiest parts of a door to see. …
- Door Frame. A door frame is what supports the door and consists of the head, jamb and sill. …
- Head or Door Head. The door head is a horizontal section of the door frame that is located at the very top.
- Door Panel. …
- Jamb. …
- Sill. …
- Threshold. …
- Rail.
What is a door leg?
Door jambs are the interior sides of the doorframe. The word “jamb” comes from the French word jambe, which means “leg” – and door jambs are sometimes also called the “legs”. … The two parts that comprise the sides of the doorframe are the only parts that can be called the jambs – and nothing else.
Is a door casing the same as a frame?
Casings, linings and frames Generally door frames are used for external doors and door linings or casings for internal doors. … Typically trenched linings or casings are used for standard door sizes, whereas untrenched linings or casings may be used for non-standard sizes and old doors where some flexibility is required.
What is door buck?
A door buck is a jig that holds the door securely on edge and prevents it from moving while you are planing, routing for hinge mortises or lock installation preparation. “Buck” was an 1800’s term for sawhorse. So a door buck is basically a door sawhorse.
What holds a door to the frame?
Hinges: Secures door to frame while enabling a swinging motion. Stiles: The sides of the door. The hinge style is where the hinges are attached to. The lock style is where the lock and knob is placed.
What is a door jamb and casing?
Door head: The horizontal component found just above the door, with two grooves the door jambs are built to fit into. … Jamb casing: Also called an architrave, this is a decorative trim mounted to the wall around the frame. It’s generally separate from the frame itself, meaning it can be removed or replaced easily.
What is door shim?
Shimming is the secret to doors that fit perfectly in the frame. … The technique involves inserting small wedged pieces of wood between the jambs and rough frame for the door to be level and plumb.
What are the parts of a door hinge called?
Most hinges consist of three basic parts: leafs, a knuckle and a pin. Leafs are the rectangular-shaped plates on the sides of a hinge. A knuckle is a cyldrical-shaped tube that’s created when the leafs are joined together.
What is the wall above a door called?
In architecture, a transom is a transverse horizontal structural beam or bar, or a crosspiece separating a door from a window above it. This contrasts with a mullion, a vertical structural member.
What is an exterior door casing?
Casing, which is the wood trim that surrounds a front door opening, can be either basic rounded or square molding or a detailed, decorative design. If you want to replace worn or damaged casing, or if you simply want a new look for your door, you can do it yourself with a few carpentry tools.
What is a door frame header?
A header is one type of beam placed over a door frame for structural support. These header beams are common for exterior door frames and bearing walls. Header beams transfer the load from the opening above to the jack studs supporting it.
What is a jack stud in framing?
A jack stud is a vertical structural element that sits below and supports a header to transfer its loads downward to the bottom plate and ultimately to the structure’s foundation. Its length determines the header height and is critical for rough openings of windows and doors.
How do you frame an interior door header?
For an interior door, make a header with two 2-by-4s laid flat together, on the 4-inch faces (which actually are 3 1/2 inches but match the studs on either side). This double header goes between the king studs at the proper height for the top of the rough frame, nailed to the king studs on each side.
What is a Muntin vs mullion?
Fundamentally, muntins are the vertical shafts of wood separating panes of glass in a traditional multi-pane glass composition. Mullions, on the other hand, are the single vertical props used in two-pane assemblies.
What is window grids?
Grids are decorative fixed inserts for windows and doors that add a traditional and personal touch. Grids can either reside between the glass in our double-pane and triple-pane windows or on the outside of the glass for a more historic look.
What is wood mullion?
A mullion is a type of cabinet door that features glass panels rather than solid wood. … A mullion is a cabinet door that is composed of glass panes. The panes are separated by wood or aluminum strips, which create a grid. This mimics the feature that is found on many types of windows.
What is a door stopper called?
A doorstop (also door stopper, door stop or door wedge) is an object or device used to hold a door open or closed, or to prevent a door from opening too widely. The same word is used to refer to a thin slat built inside a door frame to prevent a door from swinging through when closed.
Is a door jamb the frame?
Simply put, the door jamb is a specific part of the frame. It’s there to take the weight of the door, as well as help keep the rest of the frame square and stable. Your hinges are affixed to the jamb on one side of the door, while the bolt passes through the jamb on the other side.
Are all door frames the same?
The standard size for an exterior door is 80 inches by 36 inches which is 6 ft, 8 inches by 3 ft. 96 inches or 8 ft. is now very common for newer homes and stock exterior doors are also commonly available in 30 and 32-inch widths.
What is a jam on a door?
A jamb (from French jambe, “leg”), in architecture, is the side-post or lining of a doorway or other aperture. … A doorjamb, door jamb (also sometimes doorpost) is the vertical portion of the door frame onto which a door is secured.
What is a door buck frame?
Window or door bucks are wooden frames that provide the rough opening and structure into which doors or windows will be installed. … Door bucks are installed before the first bales are ever stacked, and are fastened to the slab or foundation using concrete nails or anchors.
What is Buck frame?
The Buck Frame is the wood that sits between a window and the structure. Its main purpose is to transfer the load from the window to the structure. … To install impact windows correctly, you must always change the Buck Frame unless of course the pre-existing Buck Frame is made out of concrete.
