The TwinPower Turbo (also called twin scroll turbo) is a single turbo powered from pairs of cylinders in an alternating sequence from two exhaust down tubes. The Twin Turbo Power has two turbos, each fed by one of the two exhaust down tubes..
Correspondingly, what Does a twin scroll turbo do?
Twin-scroll turbochargers promise to increase low-end torque, improve boost response, raise power throughout the powerband, maximize turbine efficiency, reduce engine pumping losses, improve fuel economy, decrease intake charge dilution during valve overlap and lower exhaust gas temperatures.
Also Know, what is the difference between twin turbo and twin scroll? Twin scroll means the pathway through the exhaust housing is split into two paths. The idea is that two smaller paths helps maintain exhaust gas velocity better than one larger one. A twin turbo engine is by definition a biturbo, but not the other way around because the turbochargers may not be identical.
Simply so, is a twin scroll turbo better?
Compared to a single-scroll (constant-pressure) turbocharger, a twin-scroll (pulse) turbocharger has the following advantages: higher turbine inlet energy due to exploitation of pressure waves (pulse energy) good performance at low – medium engine speed and load.
Do twin scroll turbos spool faster?
The twin scroll turbos are spooling a bit faster, but its because the volume of the turbine housing is less due to the divider being there. Basically a . 82 standard housing has more flow potential than a .
Related Question Answers

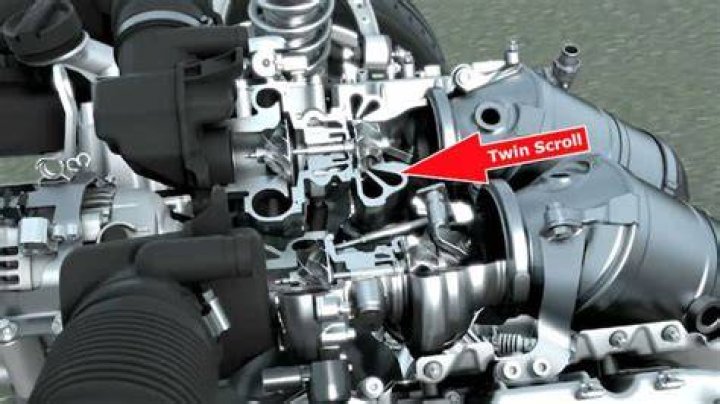

What Does a twin scroll turbo look like?
In contrast, a twin-scroll turbocharger gathers exhaust from pairs of cylinders in alternating sequence. The exhaust strikes the turbine blades, spinning them at up to 150,000 rpm. The alternating pulses of exhaust help eliminate turbo lag.Are twin turbos better than single?
Each turbo only needs the exhaust from 4 cylinders to spool it, so they are able to spool much faster than a single kit. Smaller turbos in a twin turbo kit can also make very similar power as a larger single turbo. Less lag for the similar power gain, but there's still the cost to think about.Is a twin scroll turbo a twin turbo?
The TwinPower Turbo (also called twin scroll turbo) is a single turbo powered from pairs of cylinders in an alternating sequence from two exhaust down tubes.Do twin scroll turbos need 2 Wastegates?
A twin scroll turbo will spool faster while maintaining the high end flow. They require a dual wastegate setup because you have two separate ports that exhaust is flowing through. And if you combine those two exhaust flows then you have just defeated the purpose of the twin scroll.Is Biturbo the same as twin turbo?
The term twin turbo has been often given to vehicles that use sequential turbos, a small one for low rpm torque, and a larger one for higher rpms and power. The biturbo system uses two equally sized turbos, one fed by cylinders 1-3, and the other by cylinders 4-6. They are not sequential or in series, but in parallel.Do twin turbos spool faster?
A larger turbo capable of more horsepower can spool just as fast or faster than a pair of twin turbos.What is the advantage of Twin Turbo?
Twin turbo setup provides for the reduction of the lag. It helps produce power faster by using 4 cylinders while single turbo requires all 8 cylinders for optimal boost. This type of engine is great for regular driving in city or normal regime. Twin turbo takes care of smooth engine functioning.What is a twin scroll EcoBoost engine?
No one wants turbo lag, so Ford has decided to go with the twin-scroll setup on the new EcoBoost engines. This system pairs cylinders to one side of the turbine inlet and allows kinetic energy from the exhaust to be recovered by the turbine in a better way.What is a twin scroll supercharger?
A twin-screw supercharger operates by pulling air through a pair of meshing lobes that resemble a set of worm gears. Like the Roots supercharger, the air inside a twin-screw supercharger is trapped in pockets created by the rotor lobes. But a twin-screw supercharger compresses the air inside the rotor housing.What's the difference between t3 and t4 Turbo?
The T3 does happen to be more rectangular (meening the length:width ratio is larger). They are entirely different. Neither one can be made to work with the other. A T3/T4 turbo is a turbo with a T3 (small frame) turbine side that has been mated to a larger frame compressor wheel.Is n55 twin turbo?
The BMW N55 is a turbocharged straight-six petrol engine that began production in 2009. The N55 was BMW's first straight-six engine to use a twin-scroll turbocharger. It also won three straight Ward's 10 Best Engines awards in 2011-2013.How many types of turbocharger are there?
Engineering Explained: 6 Different Types Of Turbocharger And The Advantages Of Each Setup. The world of turbocharging has about as much variety as engine layouts. Let's take a look at the different styles: Single-Turbo.What is t3 t4 Turbo?
T3/T4 hybrid turbochargers are made with a T3 turbine section, and a T4 compressor section, The T3/T4 offers the low inertia and fast boost response of the light weight T3 and the high airflow of the T4 compressor, ideal for your next turbo upgrade.What does VGT mean?
Variable-geometry turbochargers
How do variable vane turbos work?
A turbocharger equipped with Variable Turbine Geometry has little movable vanes which can direct exhaust flow onto the turbine blades. The vane angles are adjusted via an actuator. The high exhaust flow at high engine speeds are fully directed onto the turbine blades by the variable vanes.Are diesel turbos different to petrol turbos?
Ultimately, turbochargers in petrol units tend to be smaller and are designed to run at much higher RPMs than in diesels. Because they need to run at higher revs, turbo petrol engines also generate more heat than their diesel counterparts and need a cooler of some kind to keep running.How does a turbo work?
The turbocharger on a car applies a very similar principle to a piston engine. It uses the exhaust gas to drive a turbine. This spins an air compressor that pushes extra air (and oxygen) into the cylinders, allowing them to burn more fuel each second.Which BMW has twin turbo?
The BMW 135i, 335i/is, 535i, 640i, 740i/Li, X3 xD35i, X5 xD35i, X6 xD35i, and the Z4 xD35i/is have BMW's famous 3.0 Litre Inline-6 Twin Turbo engines that produces 300hp/300tq (the 640, 740 has a tweaked twin turbo engine that makes 315hp/332tq, and 315hp/330tq, respectively; whereas the 335is/Z4xD35is makes 320hp/What causes turbo lag?
WHAT CAUSES TURBO LAG? Turbo lag is caused by low engine speeds. Basically, when the car is coasting or power is not being applied, there are not enough exhaust gases to spool the turbine/s.
