What are the standard lumber sizes?
It is thus possible to find 2×4s that are four,eight, and twelve feet in length. In Canada and the UnitedStates, the standard lengths of lumber are 6, 8, 10,12, 14, 16, 18, 20, 22 and 24 feet (1.83, 2.44, 3.05, 3.66, 4.27,4.88, 5.49, 6.10, 6.71 and 7.32 meters).
.
Also asked, what sizes do boards come in?
Hardwood Lumber Dimensions
| Nominal Size | Rough Size | Actual Size: Surfaced 2 Sides |
|---|---|---|
| 4/4 inch | 1 inch | 13/16 inch (21 mm) |
| 5/4 inch | 1 1/4 inch | 1 1/16 inch (27 mm) |
| 6/4 inch | 1 1/2 inch | 1 5/16 inch (33 mm) |
| 8/4 inch | 2 inches | 1 3/4 inch (44 mm) |
Beside above, what are actual dimensions of a 2x4? A piece of surfaced (sanded smooth) 2x4 lumberactually measures 1½ inches thick and 3½ inches wide.In rough-cut condition, a 2x4 is slightly less than 2 inchesthick and approximately 4 inches wide. When wood is milled from arough to a smooth surface, it loses about ¼-inch from eachof its four sides.
One may also ask, how wide is a 2x6 wood stud?
Nominal vs. Actual Measurements of Dimension Lumber
| Nominal Size | Actual Size |
|---|---|
| 2 x 4 | 1 1/2 x 3 1/2 inches (38 x 89 mm) |
| 2 x 6 | 1 1/2 x 5 1/2 inches (38 x 140 mm) |
| 2 x 8 | 1 1/2 x 7 1/4 inches (38 x 184 mm) |
| 2 x 10 | 1 1/2 x 9 1/4 inches (38 x 235 mm) |
Why are lumber nominal and actual sizes different?
Lumber. The "nominal" cross-sectiondimensions of a piece of lumber, such as 2 X 4 or 1 X6, are always somewhat larger than the actual, or dressed,dimensions. The reason is that dressed lumber hasbeen surfaced or planed smooth on four sides (called S4S). Thenominal measurement is made before the lumber issurfaced.
Related Question AnswersWhy is 2x4 not 2x4?
Now, most timber is milled and planed to give it alittle more of a finished look, and a little more of a consistentsize and profile. Because of this extra milling, a 2x4 nolonger measures a full 2 inches by four inches. Instead, a2x4 is really only 1 1/2" by 3 1/2". The same is true ofpine.How much does a 10 ft 2x4 weight?
Kiln Dried Lumber Boards| Weight (lb) | ||
|---|---|---|
| Nominal Dimension (in x in) | Length (ft) | |
| 2 x 6 | 16 | 24 |
| 2 x 8 | 21 | 32 |
| 2 x 10 | 27 | 40 |
What do they call a 2x4 in Europe?
I cant speak for the hole of europe, but at leastin Norway a "2x4" is 48x98 mm. If you go to alumberyard, you buy 48x98 as everything is measured inmetric, but in the daily speach most people still use theterm 2x4, 2x8 aso.What is the difference between nominal and actual size?
It is important to understand the difference betweennominal and actual size when shopping for a filter. NominalSize is the printed, labeled or rounded size of thefilter. If “actual size” is printed it means theactual size of the filter is the same as the nominalsize.How much weight can a 2x4 hold?
How much weight can a 2x4 support vertically?Assuming that the load is square and there is no wind, the average8 feet 2x4 could handle around 1,000 pounds vertically. Ofcourse, it's wise not to push the material up to its limit, usebrace and alike to secure the 2x4s whenever it'sneeded.When did 2x4 stop being 2x4?
Here's a document produced by the U.S. Forest Serviceentitled ?History of Yard Lumber Size Standards (September 1964).While this document is over 40 years old now, it gives aninteresting history of when and why lumber was reduced from thecommon nomenclature (2x4, for instance) to the actual sizesused today.How wide is a 1x4 board?

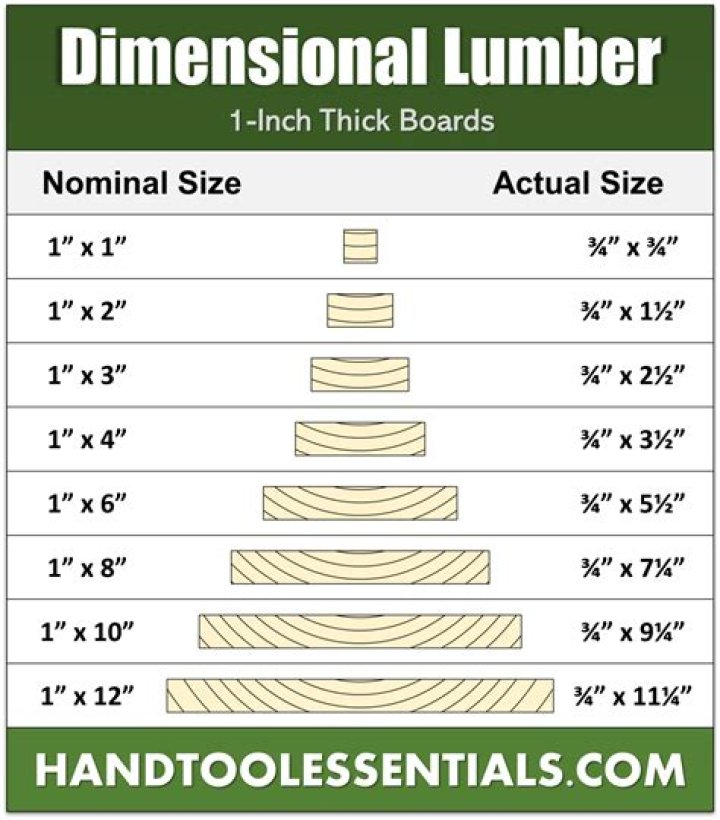

1x Board Sizes These boards lose 1/4 inch in thickness and 1/2inch in width before leaving the mill. That means a 1 x 4board is actually 3/4 inches by 3 1/2inches.How wide is a 2x10 pressure treated?
A 2x4 board is actually only 1 1/2 inches by 3 1/2 inches. Theway this comes about is that when lumber is cut from the logs, itis considered "rough cut." The wood is still green and wet.Finished Lumber Sizes.
| NOMINAL SIZE | ACTUAL SIZE |
|---|---|
| 2x4 | 1 1/2" x 3 1/2" |
| 2x6 | 1 1/2" x 5 1/2" |
| 2x8 | 1 1/2" x 7 1/4" |
| 2x10 | 1 1/2" x 9 1/4" |
How do you measure wood?
ft.). A board foot is equal to a piece of wood 12inches long x 12 inches wide and 1 inch thick, or 144 cubic inches.To figure the board foot measurement of a piece ofwood, multiply the length x width x thickness in inches,then divide by 144.When did dimensional lumber change size?
After World War I, the increasing demand forconstruction lumber led to the first national sizestandard in 1924. This was revised in 1926, 1928, 1939, and1953, while still another revision is proposed for adoption in1964.What is nominal wood size?
Nominal vs. actual lumber dimensions: Whya 2" × 4" is not always a 2" × 4" Lumber sizesare usually given in "nominal" measurements. Thenominal measurements are a board's size before it hasbeen planed smooth (surfaced) on all 4 sides. The actualmeasurements are the final size.How long is a 2x4 stud?
When using studs, other dimensions of 2-by-4 and2-by-6 lumber is used. Standard lengths for these range from 8 feetup to 16 feet.What is nominal length?
Approximate or roughcut dimension by which a material isgenerally called or sold in trade, but which differs from theactual dimension. In lumber trade, for example, a finished(dressed) 'two by four' piece is less than 2 inches thick and lessthan 4 inches wide. Also called nominal size.What is common lumber?
What is 2 Common Lumber? The National HardwoodLumber Association (NHLA) sets the standards for hardwoodlumber grades, which indicate the amount of clear,defect-free wood in a board. The best grade you'll find inmost lumberyards is Select and Better (S/B), followed by 1Common, 2 Common, and 3 Common.What size are deck boards?
Length: When possible, buy decking that can run the fulllength of your deck. All lumberyards and home centers carry16-ft. deck boards, but many also stock or can order 20- and24-ft. boards, though they may cost more.How much does a 2x4 cost?
Lumber Prices: Estimating the Cost of Dimensional Lumber| Board | Stud* | 16' |
|---|---|---|
| 2x3 | ||
| 2x4 | $1.90 | $5.35 |
| 2x6 | $3.70 | $7.25 |
