What are the different types of trailer hitches?

The Different Types of Trailer Hitches

• Rear Receiver Hitch.
• Front Mount Hitch.
• 5th Wheel Hitch.
• Gooseneck Hitch.
• Pintle Hitch.
• Bumper Hitch.
• Weight Distribution Hitch.

.

Accordingly, what are the classes of trailer hitches?

• Class 1 Hitch. Class 1 Hitch Size: 1-1/4" x 1-1/4" receiver. Class 1 Hitch Rating: Up to 2,000 lbs.
• Class 2 Hitch. Class 2 Hitch Size: 1-1/4" x 1-1/4" receiver. Class 2 Hitch Rating: Up to 3,500 lbs.
• Class 3 Hitch. Class 3 Hitch Size: 2" x 2" receiver.
• Class 4 Hitch. Class 4 Hitch Size: 2" x 2" receiver.

Secondly, what is a Class 5 hitch? maximum trailer tongue weight (TW). Class V hitches used for weight distributing are rated up to 17,000 lbs. gross trailer weight (GTW) with a 1700 lbs. maximum trailer tongue weight (TW). Class V hitches are weight carrying (WC) and weight distributing (WD) hitches depending on the vehicle and hitch specifications.

Consequently, what is the difference between a Class 2 and Class 3 trailer hitch?

Class II trailer hitch receivers have a 1-1/4 inch receiver and can be rated up to 3,500 lbs in GTW and up to 525 lbs in TW. Class III, on the other hand, have a 2 inch receiver and have up to 8,000 lbs GTW and 800 lbs TW.

What is the difference between Class 3 and 4 hitch?

The main difference between a Class III hitch and a Class IV hitch is the capacities they set for the hitches. Class III hitches are rated for up to 6,000 lbs GTW with 600 lbs TW whereas a Class IV is rated for up to 12,000 lbs GTW and 1,000 TW.

Related Question Answers

What is the difference between a Class 1 and Class 2 hitch?

Class I and Class II hitches both have a 1-1/4 inch receiver opening. The difference is that a Class I hitch has a lower tongue weight rating, usually 200 pounds and a lower towing rating, usually 2,000 pounds. A Class II hitch usually has a tongue weight rating of 350 pounds and a towing rating of 3,500 pounds.

Which class of trailer hitch is best suited?

Class I trailer hitch is best suited for a boat and its equipment weighing less than 2,000 pounds and class II trailer hitch is best suited for a boat and its equipment weighing 2,000 pounds or greater up to 3500 pounds. Class III, IV and V have their own range.

Can you install a hitch yourself?

Yes, you can install a trailer hitch by yourself as long as you have the right tools for the job. DIY hitch installation is a great way to save money on the trailer hitch installation cost. CURT custom hitches are engineered to make installation as easy and as minimally invasive as possible.

How do I know what class my trailer hitch is?

Check Hitch Class With Vehicle Consult your vehicle's user manual for the maximum towing capacity. Write this number down as GTW. The maximum towing capacity of your hitch should be less than your vehicle's GTW. Your hitch class should have a GTW that is less than your vehicle's GTW.

What size is a Class 1 hitch?

Class I and Class II trailer hitches typically have a 1-1/4" x 1-1/4" receiver opening. These hitches are most often found on passenger cars and smaller SUVs.

What is the difference between a hitch and a receiver?

Hitch Types A device which attaches directly to the tow vehicle providing the connection between the tow vehicle and the trailer. A fixed tongue hitch includes the ball platform, while a receiver style hitch has a receptacle (typically 1-1/4" or 2") for inserting special ball mounts or bike racks.

Why is it important to use trailer safety chains?

In other words, safety chains are an essential piece for making sure your trailer is properly connected to your tow vehicle. They are also necessary so that you can still safely guide your trailer and maintain control as make your way to a safe stopping point in the event that the event of a ball or coupler failure.

What is a Class 2 tow package?

Class II hitches are weight carrying (WC) hitches rated up to 3500 lbs. gross trailer weight (GTW) with a maximum trailer tongue weight (TW) of 300 lbs. A Class II hitch usually has a 1-1/4" square receiver opening. A higher class drawbar does not increase the towing capacity of the hitch.

How do you use a hitch?

They are as follows:

1. Double-check that your coupler clamp and release latch are securely hooked. Use a coupler pin or lock to keep the coupler in its closed position.
2. Connect your safety chains from the tab(s) on the hitch to the trailer.
3. Plug in your trailer light wiring harness to the connector on your vehicle.

What is the most common size trailer hitch ball?

The most common ball size is two inches in diameter, but heavy-duty industrial trailer balls can go up to 2 1/4". The diameter of your ball mount's hole must be no more than 1/16" greater than the ball shank diameter in order to fit [source: etrailer.com].

What height should a tow ball be?

between 350 and 420mm

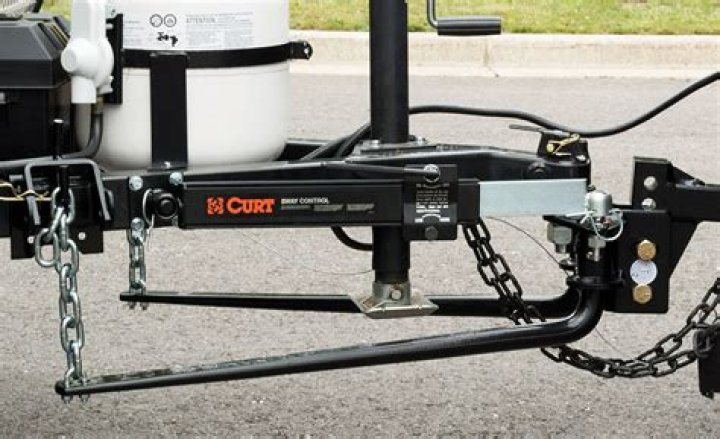

Do I need a weight distribution hitch?

It's a Required Piece of Equipment Every truck manufacturer, whether it is for a midsize, 1/2-ton, or heavy-duty, requires a weight-distributing hitch when using a bumper trailer hitch ball. Most mid-size and half-ton trucks require it at 5,000 pounds, while heavy-duty trucks usage can vary from 6,000 to 8,500 pounds.

Can you use a trailer hitch both ways?

The tongue of that trailer needs to be level, so whether a vehicle is lifted or lowered will determine what that drop or rise should be. Don't forget those ball mounts can be flipped upside down; yep, they work both ways, hence the term "rise'" not drop.

How much weight can a 2 inch ball pull?

8000 lbs

What is a pintle hitch?

2) Towing with Pintle Hitches. Pintle Hitch is a type of tow hitch that uses a tow ring configuration to secure to a hook or a ball combination. Pintle hitches are commonly used on military, construction, industrial and agricultural equipment.

What does trailer hitch class mean?

Trailer hitches are given a class rating based on their maximum weight capacity and receiver opening size. The classes range from Class I - which has the lowest capacity and a 1-1/4" x 1-1/4" opening - to Class V - which has the highest capacity and, typically, a 2-1/2" x 2-1/2" opening.

Are trailer hitches Universal?

Multi-Fit Trailer Hitches CURT multi-fit hitches are designed to be a universal trailer hitch option, providing a dependable alternative to a custom fit. Each multi-fit universal hitch is made to fit a wide variety of vehicle applications, and most require little or no drilling for installation.

What does V 5 Mean on a trailer hitch?

Class V hitches are for extra heavy loads greater than 10,000 lbs. GTW and more than 1,200 lbs. tongue weight. This type of hitch is usually a weight-distributing hitch. This type of hitch may have up to a 2-1/2 inch receiver with a 3/4-inch pinhole.

How much is a hitch?

Costs of a trailer hitch Standard hitches can range from $150 to $800. Gooseneck hitches' costs average about $400 to $800, and fifth wheel hitches can run from $500 to $2,500. If you tow things with your car or truck, there are a few key factors to consider.
