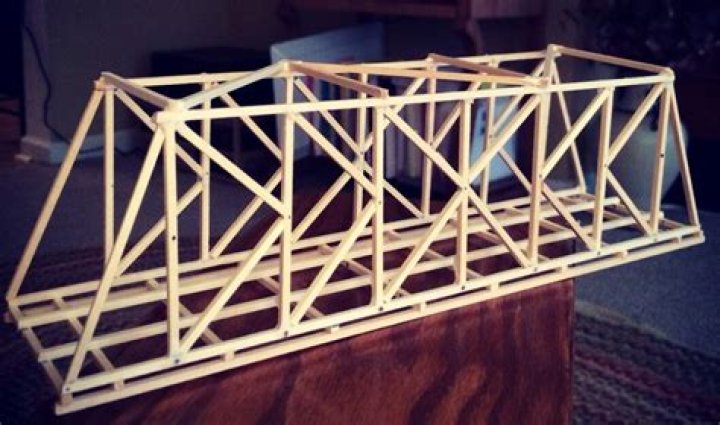

How do you make a strong truss bridge?

What Bridge Designs Are the Strongest for Science Projects?

Truss Bridge. A truss bridge is made of straight building materials that are connected together at angles where adding a weight or pressure cause the joints and/or connections to compress and push against each other.
Suspension Bridge.
An Arch Bridge.
Beam Bridge.

Subsequently, one may also ask, what is the strongest type of truss bridge?

In this experiment we have tested which type of truss bridge is the strongest, yet uses the least amount of material. Two of the most used truss bridges are of the Pratt and Howe design. Through our experiment it was found that the bridge design that minimized the maximum compression force was the Howe Bridge.

Furthermore, what are the strengths of a truss bridge? The Pros of Truss Bridges

High Strength. The triangular shape that the supports are place in give it a great amount of strength.
No Span Restrictions. One of the most appealing properties of a truss bridge is that it can be built over very long as well as very short distances.
Road Placement.
Relatively Economical.

Then, what type of bridge can hold the most weight?

In conclusion, straight bridges ( truss bridges) hold the most weight. While I was doing this project i learned that straight bridges are some of the most strongest bridges in the world. Arch bridges are also strong because they have extra support at the ends, but truss bridges are usually stronger.

How do you design a truss?

Quick Steps of Truss Design Process

Step 1: Model walls, roofs, ceilings, floors and main beams.
Step 2: Generate truss areas and trusses.
Step 3: Generate truss members.
Step 4: Check connections between members.
Step 5: Check supports.
Step 6: Generate truss labels and drawings.
Step 7: Generate internal pressure area.

What makes a strong truss?

Trusses are physically stronger than other ways of arranging structural elements, because nearly every material can resist a much larger load in tension or compression than in shear, bending, torsion, or other kinds of force. These simplifications make trusses easier to analyze.

How much weight can a truss bridge hold?

Truss bridge number one held 24 pounds. The second truss bridge held 23 pounds so the average weight held by the truss bridges was 23.5 pounds.

What is the easiest bridge to build?

Beam bridges typically span up to 250 feet, and they're also the cheapest and easiest bridges to build.

What is the weakest type of bridge?

Beam Bridge

What are truss bridges used for?

Truss bridge is a type of bridge whose main element is a truss which is a structure of connected elements that form triangular units. Truss is used because it is a very rigid structure and it transfers the load from a single point to a much wider area.

How do truss bridges work?

A truss bridge is a variation of a beam structure with enhanced reinforcements. The deck is in tension. The trusses handle both tension and comprehension, with the diagonal ones in tension and the vertical ones in compression. An arch bridge supports loads by distributing compression across and down the arch.

What makes a bridge efficient?

A suspension bridge is inherently efficient because the flexible cables change shape to take the forces most efficiently. A deeper sag reduces cable force, but increases the height of the towers and makes them more susceptible to large forces. A generally accepted optimum is a 10:1 span to sag ratio.

What is the most common truss bridge?

Pratt truss bridge

What materials are used in a truss bridge?

Truss bridge

Truss bridge for a single track railway, converted to pedestrian use and pipeline support
Ancestor	Beam bridge
Span range	Short to medium – not very long unless it is continuous
Material	Timber, iron, steel, reinforced concrete, prestressed concrete
Movable	May be movable – see movable bridge

What is the best angle for a truss bridge?

Design engineers normally try to keep it at 45° as it is the best compromise. There are advantages in having a steeper angle for the diagonal members and also disadvantages. Greater depths with lesser number of panels and steeper angles result in lesser chord forces.

How many types of truss bridges are there?

What is a Howe truss?

Howe truss is a type of bridge design that was introduced by an American architect William Howe. This approach makes diagonal members of Howe truss bridge in compression, while vertical web members are in tension.

What is the strongest shape?

Thus a triangular shape is the strongest one which is also called a rigid structure. It is also called a perfect frame in physical structures. Here's one part of it. As far as polygons go, a triangle is the only one that is defined by its side lengths.

What are bridge supports called?

Pile: A pile is a vertical support structure that's used, in part, to hold up a bridge. It can be made of wood, concrete, or steel.

What are the advantages and disadvantages of truss bridges?

Because of the triangular design, each part of the bridge helps to support other parts, making it an effective design. The key disadvantage of utilizing a truss bridge to span a distance is that they typically require more width than other bridges.

What is the difference between a Pratt truss and a Howe truss?

The main differences are that the Pratt truss has no force on the ends and the compression members are vertical. The Howe truss has no force on the center and the tension members are vertical instead. - The Howe truss has no net force in the center, where the load will be placed.

Why is the truss bridge so strong?

Extremely strong The structure of interconnecting triangles means that the load-bearing capacity of truss bridges is huge. The structure effectively manages both compression and tension, by spreading out the load from the roadway throughout its intricate structure.

What is the strongest bridge design for Popsicle sticks?

Howe Truss Bridge It weighed about 150 grams, and held 140 pounds. With less than 100 popsicle sticks, that is a lot of strength in this bridge. Its efficiency score was 424. This is the strongest popsicle bridge I have built […]

What is placement of travel surface?

span (simple, continuous, cantilever), material (stone, concrete, metal, etc.), placement of the travel surface in relation to the structure (deck, pony, through), form (beam, arch, truss, etc.).
