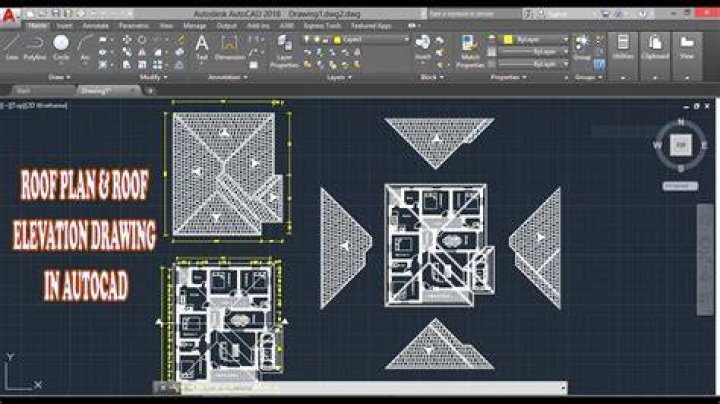

How do you make a roof plan in AutoCAD?

To Create a Roof From Polylines

1. Draw a closed 2D polyline in the shape of the intended roof, in the location where you want to place the roof.
2. Open the tool palette that contains the roof tool you want to use.
3. Right-click a roof tool, and click Apply Tool Properties to Linework and Walls.
4. Select the polyline to convert, and press Enter.

.

People also ask, what is the purpose of a roof framing plan?

A roof plan is used to show the shape of the roof . The roof framing plan is similar to the roof plan but in addition to showing the shape of the structure and the outline of the roof, it also shows the size and direction of the framing members use to frame the roof.

Beside above, what is the standard pitch of a roof? Common Roof Pitches The most commonly used roof pitches fall in a range between 4/12 and 9/12. Pitches lower than 4/12 have a slight angle, and they are defined as low-slope roofs. Pitches of less than 2/12 are considered flat roofs, even though they may be very slightly angled.

Likewise, what are roof plans?

A roof plan is a scaled drawing or diagram of a proposed roof development containing dimensions of the entire roof structure, including shape, size, design and placement of all materials, ventilation, drainage, slopes, valleys and more.

What does a roof plan look like?

A roof plan will usually just be a 2-dimensional drawing that depicts your roof from a bird's eye view. The plan is written to coincide with the scale of your home's floor plan. It will often include notes that detail specifics about the pitch of the roof, as well as its ridges and slopes.

Related Question Answers

What is elevation plan?

ELEVATION PLAN. An elevation drawing is an orthographic projection drawing that shows one side of the house. The purpose of an elevation drawing is to show the finished appearance of a given side of the house and furnish vertical height dimensions. Four elevations are customarily drawn, one for each side of the house.

How do you build a roof chief architect?

ANSWER

1. Select Build> Wall> Straight Exterior Wall from the menu and draw four connecting walls to form an enclosed area.
2. Select Build> Roof> Build Roof from the menu to open the Build Roof dialog.
3. On the Roof panel of the Build Roof dialog:
4. Select Build> Roof> Roof Plane from the menu.

What is included in structural drawings?

A structural drawing, a type of Engineering drawing, is a plan or set of plans and details for how a building or other structure will be built. Structural drawings are also included with a proposed building's contract documents, which guide contractors in detailing, fabricating, and installing parts of the structure.

What is a gable on a roof?

A gable is the generally triangular portion of a wall between the edges of intersecting roof pitches. The shape of the gable and how it is detailed depends on the structural system used, which reflects climate, material availability, and aesthetic concerns.

How do you create a roof plan in Revit?

Help

1. Display a floor plan view or a reflected ceiling plan view.
2. Click Architecture tab Build panel Roof drop-down (Roof by Footprint).
3. On the Draw panel, select a sketch or pick tool.
4. Sketch, or pick, a closed loop for the roof.
5. Specify slope defining lines.
6. Click (Finish Edit Mode), and then open a 3D view.

What are the parts of a roof frame?

The main structural parts of a roof are ceiling joists, ridge board, jack rafter, hip rafter, common rafters, creeper rafters, raking plates, out riggers and noggings or last rafter overhang. Tie-down fixings are used to resist uplift and shear forces (lateral loads) in floor framing, wall framing and roof framing.

What's the difference between Truss and Rafter?

Trusses and rafters are both assembled ahead of being installed onto the roof. Trusses are assembled in a factory using pre-engineered structures and joints. On the other hand, rafters are assembled at the construction site. Rafters contain two main outer beams which support the roof structure.

How do you determine the height of a roof pitch?

How to Figure the Center Height of Rafters

1. Divide the width of the exterior house frame in inches by two. This provides the run for one side of the roof in inches.
2. Multiply the roof pitch by the run factor. The result equals the total distance the roof rises.
3. Calculate the top height of the ridge board.
