Counters can be easily made using flip-flops. As the count depends on the clock signal, in case of an Asynchronous counter, changing state bits are provided as the clock signal to the subsequent flip-flops. Those Flip-flops are serially connected together, and the clock pulse ripples through the counter..
Just so, how do you make an asynchronous counter?
Asynchronous counters can be easily designed by T flip flop or D flip flop. These are also called as Ripple counters, and are used in low speed circuits. They are used as Divide by- n counters, which divide the input by n, where n is an integer. Asynchronous counters are also used as Truncated counters.
Likewise, do asynchronous counters have any advantages? Advantages. Asynchronous counters can be easily designed by T flip flop or D flip flop. These are also called as Ripple counters, and are used in low speed circuits. They are used as Divide by- n counters, which divide the input by n, where n is an integer.
In this manner, what is the major disadvantage of asynchronous counters?
Disadvantages of Asynchronous Counters: An extra “re-synchronizing” output flip-flop may be required. To count a truncated sequence not equal to 2n, extra feedback logic is required. Counting a large number of bits, propagation delay by successive stages may become undesirably large.
Which flip flop is used in asynchronous counter?

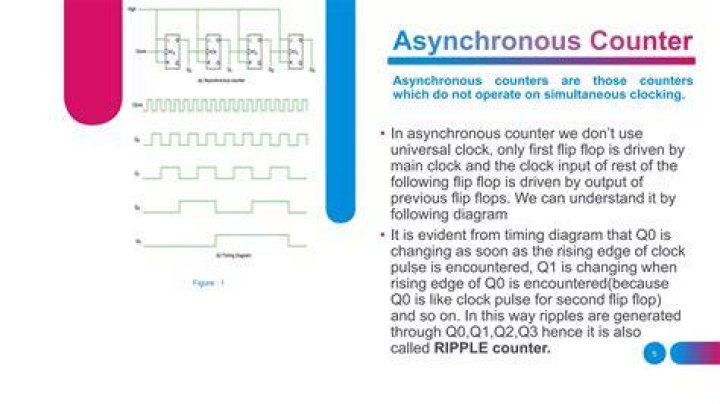

A ripple counter is an asynchronous counter where only the first flip-flop is clocked by an external clock. All subsequent flip-flops are clocked by the output of the preceding flip-flop. Asynchronous counters are also called ripple-counters because of the way the clock pulse ripples it way through the flip-flops.
Related Question Answers
How does an asynchronous counter work?
Asynchronous counters are those whose output is free from the clock signal. Because the flip flops in asynchronous counters are supplied with different clock signals, there may be delay in producing output. The required number of logic gates to design asynchronous counters is very less. So they are simple in design.What are the applications of asynchronous counters?
Applications of Asynchronous Counters - They are used as frequency dividers, as divide by “N” counters.
- They are used for low noise emission and low power applications.
- They are used in designing asynchronous decade counter.
- It is also used in Ring counter and Johnson counter.
What is a modulo 10 counter?
In general, any arrangement of a “m” number of flip-flops can be used to construct any MOD counter. A common modulus for counters with truncated sequences is ten (1010), called MOD-10. A counter with ten states in its sequence is known as a decade counter.What is a asynchronous counter?
Asynchronous counters are those whose output is free from the clock signal. Because the flip flops in asynchronous counters are supplied with different clock signals, there may be delay in producing output.What is a mod counter?
MOD Counters are cascaded counter circuits which count to a set modulus value before resetting. The job of a counter is to count by advancing the contents of the counter by one count with each clock pulse.What is asynchronous up down counter?
An asynchronous up-down counter includes a plurality of counter blocks. Each of the counter blocks has a counter output, an up-down control output, and an up-down control input. A counter signal output from each of the counter blocks has at least two bits.What is application of counter?
The main application of counter is to count events , and each event is converted in to one clock cycle. That means counter is used to count number of clocks. There are two types of counter Synchronous and Asynchronous Counter.What is divide by N counter?
A Divide by N counter implies that it divides the input clock frequency by N ie; if you cascade four flip-flops then, the output of every stage is divided by 2, if you are taking the output from the 4th flip-flop, then its output frequency is clock frequency by 16 (2^4).How many flip flops are needed for mod 30 counter?
5 Flip-Flop
What is a mod 6 counter?
A modulo 6 (MOD-6) counter circuit, known as divide-by-6 counter, can be made using three D-type flip-flops. The circuit design is such that the counter counts from 0 to 5, and then on the 6th count it automatically resets to begin the count again.What is a mod 5 counter?
In other words, the modulus (or just modulo) is the number of states the counter counts and is the dividing number of the counter. Modulus Counters, or simply MOD counters, are defined based on the number of states that the counter will sequence through before returning back to its original value.What is a mod 8 counter?
A mod-8 counter stores a integer value, and increments that value (say) on each clock tick, and wraps around to 0 if the previous stored value was 7.What is BCD counter?
A binary coded decimal (BCD) is a serial digital counter that counts ten digits . And it resets for every new clock input. As it can go through 10 unique combinations of output, it is also called as “Decade counter”. A BCD counter can count 0000, 0001, 0010, 1000, 1001, 1010, 1011, 1110, 1111, 0000, and 0001 and so on.What is the difference between synchronous and asynchronous counter?
In Asynchronous Counter is also known as Ripple Counter, different flip flops are triggered with different clock, not simultaneously. In synchronous counter, all flip flops are triggered with same clock simultaneously. In asynchronous counter, different flip flops are triggered with different clock, not simultaneously.What do you mean by Mod?
mod. The term mod is derived from the act of modifying a game. To mod a game is to create custom levels, objects, characters, or even unique or stand-alone game from an existing game engine. Many games come with an editor that allow for easier modding. A person who mods a game is called a modder.Why can't we build a truth table for counter?
In “Counter”, the clock changes the values that RAM contains, one of which affects “Ripple” and in turn changes the output. We can't build a truth table for “Counter” because it is not static, meaning the inputs and outputs are changing with every new clock cycle.What do you mean by shift register?
A shift register is a digital memory circuit found in calculators, computers, and data-processing systems. Shift registers are commonly used in converters that translate parallel data to serial data, or vice-versa. Shift registers can also function as delay circuits and digital pulse extenders.How does a ring counter work?
Ring Counter. A ring counter is a Shift Register (a cascade connection of flip-flops) with the output of the last flip flop connected to the input of the first. It is initialised such that only one of the flip flop output is 1 while the remander is 0.Which is faster asynchronous or synchronous?
Asynchronous transfers are generally faster than synchronous transfers. This is because they do not take up time prior to the transfer to coordinate their efforts. However, because of this, more errors tend to occur in asynchronous transfers as opposed to synchronous transfers.
