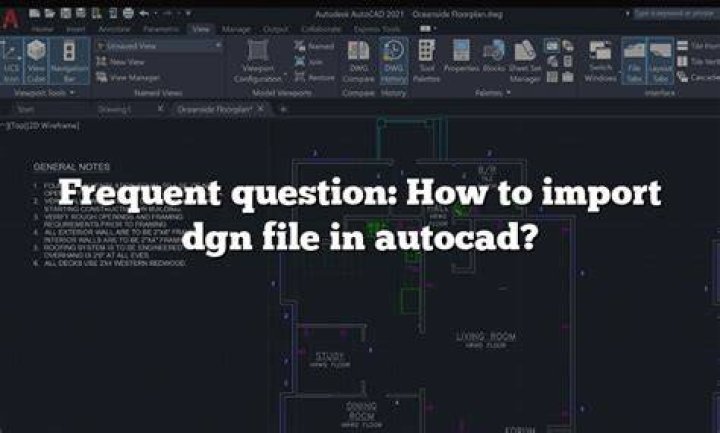

How do I open a DGN file in AutoCAD 2019?

Import MicroStation DGN File in AutoCAD LT 2019

Click Application menu Open DGN. Find.
In the Import DGN File dialog box, find and select the DGN file you want to import, or enter the name of the DGN file in the File Name box.
Click Open.
In the Import DGN Settings dialog box, select a design model from the list and specify the desired import options.

Simply so, can you open a DGN file in AutoCAD?

There are two options to use a DGN file in AutoCAD: Use the DGNIMPORT command to convert the DGN content and bring it into a DWG file. This command is available from the application menu or by typing it in at the command line. This option keeps the DGN in its native format and attaches it to a DWG as a reference file.

Beside above, how do I convert a DGN to DWG? Import to AutoCAD From the Application Menu Button select Open > DGN. The Import DGN File dialog will appear. Select the file you want to convert and then select Open. The DGN Import Settings dialog will appear.

Similarly, you may ask, how do I open a DGN file?

DGN files can be opened by Bentley Systems MicroStation and the free Bentley View program. The DGN format is also supported by several other third-party programs, such as Autodesk AutoCAD and IMSI TurboCAD. DGN files can be converted to the more universal . DWG format by AutoCAD LDT.

Can you convert MicroStation to AutoCAD?

Re: Converting from Microstation to AutoCAD Depending on which version you have you can use the EXPORT command from the file menu to convert DGN to DWG, or you can just use SAVEAS.

What does DGN stand for?

DGN

Acronym	Definition
DGN	Deutsche Gesellschaft für Neurologie (German: German Society of Neurology)
DGN	Dirección General de Normas (Standards Organization in Mexico)
DGN	Downers Grove North (Downers Grove, IL high school)
DGN	MicroStation Design File (file format/extension)

What is a DXF file?

AutoCAD DXF (Drawing Interchange Format, or Drawing Exchange Format) is a CAD data file format developed by Autodesk for enabling data interoperability between AutoCAD and other programs. Versions of AutoCAD from Release 10 (October 1988) and up support both ASCII and binary forms of DXF.

Can TrueView open DGN files?

File Types DWF, DXF, DWG and DGN. Hello, As per the documentation, DWG TrueView can open DXF and DWG files.

What is MicroStation used for?

MicroStation. MicroStation is a CAD software platform for two and three dimensional design and drafting, developed and sold by Bentley Systems and used in the architectural and engineering industries. It generates 2D/3D vector graphics objects and elements and includes building information modeling (BIM) features.

What is a seed file in AutoCAD?

A seed file for a DGN file is similar to a drawing template (DWT) file that contains default settings and attributes, such as working units. In addition, the seed file contains settings that are not present in a DWG file, and therefore inherited in the exported DGN.

Is MicroStation free?

There is not a free version of MicroStation.

How do I convert a MicroStation file to PDF?

Converting 2D Documents to PDFs Open the MicroStation document you want to convert to PDF in MicroStation. Click "File" on the menu bar and choose "Open" to display the Open dialog box. Navigate to the file, select it and click "Open."

Where is the application menu in AutoCAD?

The Application menu, located in the top-left corner of the program, replaces the traditional menu structure you might be familiar with in previous releases of AutoCAD Plant 3D toolset. Instead of a horizontal menu display across the top of the program, the application menu presents the menus in a vertical list.

What program opens DGN?

In addition to Autodesk AutoCAD, Bentley View and Bentley Systems MicroStation, programs that can open DGN files include Corel PaintShop Photo Pro and IMSI TurboCAD Deluxe versions. DGN is short for “design.”

What program opens DNG files?

Obviously any product in the Adobe imaging family should be able to open a .DNG file such as Adobe Photoshop or Adobe Lightroom. If you are running Windows 7 or Apple IOS, Adobe has a codec to handle that chore. A codec is a small software program that helps your operating system translate and open files.

How do I open a DGN file without AutoCAD?

To Import a MicroStation DGN Drawing

Click Application menu Open DGN. Find.
In the Import DGN File dialog box, find and select the DGN file you want to import, or enter the name of the DGN file in the File Name box.
Click Open.
In the Import DGN Settings dialog box, select a design model from the list and specify the desired import options.

What is Bentley View?

With millions of users, Bentley View is the industry's most powerful free viewer. You can view over 50 file formats, including CAD and raster images as well as Bentley's uniquely powerful iModels.

Is MicroStation similar to AutoCAD?

Terminology. Even though MicroStation and AutoCAD are very similar, they use different terminology to refer to many of the same features. In AutoCAD, "attributes" are used for items while MicroStation refers to them as "tags." MicroStation uses the term "design model" while AutoCAD uses the term "model space."

Can SolidWorks open DGN files?

dgn (microstation) to SolidWorks. I have some models in dgn format that I need to import to SolidWorks. When exporting to step from microstion and importing to solidworks all the parts from the model ends up in one large assembly, not divided in any way.

Can MicroStation open AutoCAD files?

You can access the DWG options by either opening a file from the MicroStation Manager or by using the menu command File > Open. To make the DWG Options button available, you must select a DWG or a DXF file type. There are two tabs in the Open DWG Options dialog.

What program will open a DWG file?

DWG files contain designs, photos, maps, and geometric data, and were originally created by Autodesk in 1982 with the launch of AutoCAD drafting software. DWG files can be opened directly in AutoCAD or Microsoft Visio, or with Autodesk products A360 Viewer and AutoCAD 360.

How do I import a DGN file into AutoCAD?

Help

Click Application menu Open DGN. Find.
In the Import DGN File dialog box, find and select the DGN file you want to import, or enter the name of the DGN file in the File Name box.
Click Open.
In the Import DGN Settings dialog box, select a design model from the list and specify the desired import options.

Can Revit open DGN files?

Revit Architecture supports importing most DGN surfaces and solids with the exceptions of cones, B-Spline surfaces, and SmartSolids. In addition to using the Import CAD and Link CAD tools, you can import CAD files using drag-and-drop from Windows® Explorer onto a model, drafting, or sheet view of Revit Architecture.
