Can a wireless access point be connected to a switch?

An access point connects to a wired router, switch, or hub via an Ethernet cable, and projects a Wi-Fi signal to a designated area.

.

Accordingly, how does a wired network connect to a wireless access point?

How to Install Your Wireless Access Point

1. 1Connect the Ethernet port of your cable modem or router to your wireless access point's Internet (or WAN) port using an Ethernet network cable.
2. 2Connect your wireless access point to your computer using an Ethernet network cable.
3. 3Turn on your DSL or cable modem and wait about two minutes.

Additionally, can I connect access point to router? Use an Ethernet cable to connect the access point to the router. The cable should be inserted into a LAN port on the router and into the main Ethernet port on the access point. If it is necessary to provide access to the Internet over the local area network, use an Ethernet cable to connect the router to the modem.

Correspondingly, what is the difference between a wifi extender and an access point?

A range extender repeats the wireless signal from your router to expand its reach by creating a second network, while an access point relies on a hardwired connection to your network, rather than simply repeating the existing network.

Can an access point have the same SSID?

Connect two access points to the same network. Make sure that there is only 1 DHCP server. Use the same wireless network name (SSID) for both AP's. Use the same password and encryption settings for both AP's.

Related Question Answers

Do I need a wireless access point?

A wireless access point (often referred to as a WAP) is a piece of equipment that enables you to connect devices which have wi-fi access to your wired network. Most homes only require a wireless router, which will usually have a wireless access point built into it, to provide wi-fi throughout an average-sized house.

How do I connect to a wired/wireless network?

Connect the WAP to your router or switch using the supplied Ethernet cable. Note: If your WAP does not have Power over Ethernet (PoE) capability, connect the AC power adapter to the WAP and plug it to the power outlet. Step 2. Connect your wireless computer to the wireless network that the WAP is broadcasting.

How many access points can I connect to a router?

Many individual wireless routers and other access points can support up to approximately 250 connected devices. From a wired perspective, routers can accommodate a small number (usually between one and four) of wired Ethernet clients with the rest connected over wireless.

Which device connects wireless users to a wired network?

wireless access point

What is a wireless access point in Networking?

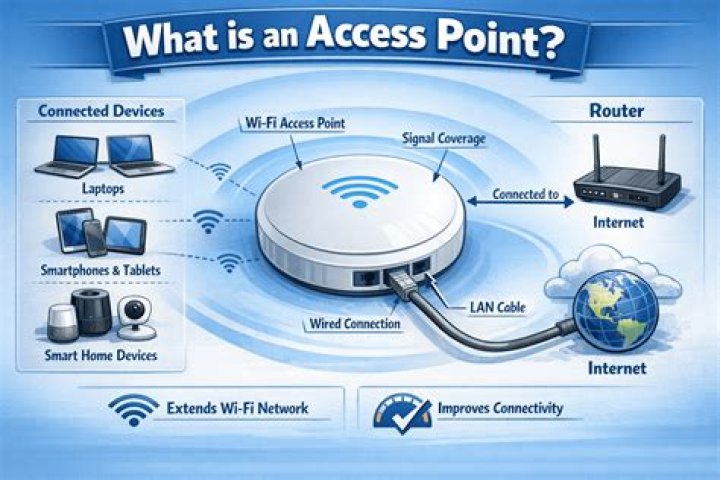

A wireless access point (WAP) is a hardware device or configured node on a local area network (LAN) that allows wireless capable devices and wired networks to connect through a wireless standard, including Wi-Fi or Bluetooth. A WAP is also known as a hotspot.

How can information be transferred between a wireless device and a wired network?

While wireless devices communicate over the air, a wired setup uses physical cables to transfer data between different devices and computer systems. A wired network is a common type of wired configuration. Most wired networks use Ethernet cables to transfer data between connected PCs.

Which is better access point or repeater?

Access point is a device connected with cable (Cat5) to your main router/modem/internet, and serving clients wirelessly. Repeater is a wireless network device that repeats wireless signals to extend range without being connected with cable to either your router/modem, or your clients.

Do I need a repeater or access point?

While an access point can be put in front of an obstacle, a repeater will need to be angled around it. If you're signed up to an ISP that allows you access to a public-broadcast WiFi signal, you can use a router in repeater mode to pick up the signal and beam it to your household.

Will an access point extend range?

Adding a wireless access point to extend your network's range can be confusing. Many routers come with wireless capability, but you only need one router. You want to extend your wireless range by adding another wireless access point (WAP). Sounds easy, and it can be.

Will a second router increase Internet speed?

A fiber internet connection could give you speeds of up to 10 Gigabits per second, or 10 Gbps. An alternative is to buy a second internet service, with a second router. Both routers will work independently of each other as two separate networks, effectively doubling your Wi-Fi and your internet bandwidths.

How many access points do I need?

Without knowing above, the estimate will be a very rough. But for those that just want a starting point, a rough estimate is 1600 square feet per access point for typical scenarios and or one access point for every 30 users.

What is a wireless access point vs router?

Wireless access point does not route anything. It just converts an existing wired network (LAN) into a wireless one (WLAN). A router can be a access point but a access point can't be a router.

Can I use 2 routers on the same network?

Yes, it is possible to use two (or even more than two) routers on the same home network. The benefits of a two-router network include: Support for more wired devices: If your first router is the wired Ethernet kind, it supports only a limited number of connected devices (typically only four or five).

How do I assign an IP address to an access point?

Assigning a Static IP Address on an Access Point

1. Log in to the access point's web-based setup page.
2. Once the setup page appears, click the Network Setup drop-down and select Static IP.
3. Enter the Static IP Address that you want to use on the WAP300N, the Subnet Mask and the Default Gateway (the router's IP address) in their respective fields.
4. Click Save Settings.

How do I add a second router to my network?

Article SummaryX

1. Run an Ethernet cable from the modem to the first router.
2. Run another cable from the first router to your computer.
3. Enable DHCP on first router.
4. Disconnect the first router from the computer.
5. Connect a second router to the computer.
6. Disable DHCP on the second router.

Can you connect an access point to another access point?

The important thing is that the access points are actually wired to each other and, say, your internet connection. And you're expecting the access point to access point wireless connection to act as a virtual extension cable then this will probably not work. Access Points typically do not communicate with each other.

Does access point have DHCP?

Configuring a Wireless Access Point. Multifunction access points usually provide DHCP and NAT services for the networks and double as the network's gateway router. As a result, they typically have a private IP address that's at the beginning of one of the Internet's private IP address ranges, such as 192.168.

How do I setup a repeater?

Repeater Setup Process

1. Choose a placement that is free of the same sorts of obstructions that can interfere with your router's signal.
2. Plug the repeater into a working AC power outlet in your chosen location within range of your existing Wi-Fi coverage.
3. Using a nearby computer or laptop, connect the repeater.

How do I access my wireless access point?

Select Wi-Fi from the left sidebar and then click on Advanced on the right-hand side pane.

1. On the following screen, click on the TCP/IP tab at the top.
2. Your wireless access point IP should be listed next to Router. You can now use it to configure your network.
